Removal/Mounting of the wheels, Rotating if required - wh4050pkw0000x(4050)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85

Revision: Wheel rotation figure changed.

Removing, mounting wheels

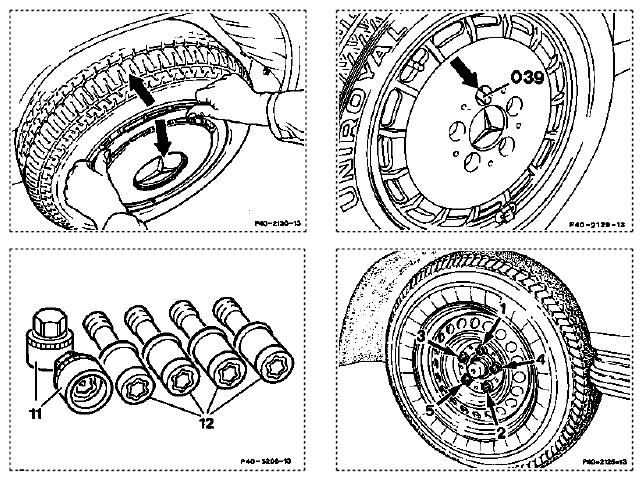

Fig 1: Removing/Mounting Wheels

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Retighten new rims after driving 100 to 500 km

Wheel cover	pull off, press on.
Lug bolts and/or rim lock bolts (12)	screw out, screw in. Tightening sequence "1 to 5".
NOTE: The lug bolts, with the exception of the rim lock bolts, can be tightened with an impact wrench up to approx. 3/4 of the specified tightening torque. Then use torque wrench.	See table for tightening torques. Torque wrench 001 589 67 21 00, socket wrench 126 589 04 09 00.
Lug bolts and/or rim lock bolts	check. Clean lug bolts and rim lock bolts, if dirty.
The spherical collar on the lug bolts or rim lock bolts must be free of grease and oil.	Replace bolts if threads are damaged or zinc coating is worn off of bolt collar or spherical collar is corroded.
Wheels	remove, install.
	On light alloy rims with recessed mounting holes screw centering bolt (039) into one threaded hole at top before sliding on rim (arrow). The centering bolt is located in the vehicle tool kit or next to the spare tire.
Tires	check for damage and condition - measure tread depth (see operation item 4051). Rotate tires depending on tread wear pattern (see B).
Rims	check.
The spherical segments on the rims must be free of grease and oil.	Check inside of wheel for dirt deposits; if necessary clean wheels on separate order. Check contact surface on rim for dirt deposits, clean, if required. Check centering and spherical segments as well as rim flanges for damage.
Front wheel hub, brake disc drum	check wheel contact surface for contamination and corrosion. Clean corroded surfaces with wire brush or emery cloth.

Rotating wheels

Fig 2: Identifying Wheel Rotating

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Wheels

Wheels	rotate without changing direction of rotation
NOTE: For maximum mileage while simultaneously maintaining good handling characteristics: Rotate wheels with summer and winter tires depending on wear condition (see operation item 4051), between 5000 and 10 000 km according to experience.
Tire air pressure	correct. See tire air pressure sticker in tank flap for specified value.
Wheels	rebalance, if required, on separate order.

TIGHTENING TORQUES

in Nm

Lug bolts M12 x 1.5 (all models except model 140)

110, 130 ⁽¹⁾

Lug bolts M14 x 1.5 (model 140)

150

⁽¹⁾	¹⁾ Only for special protection vehicles model 126.

Special tools

Fig 3: Identifying Special Tool (001 589 67 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Special Tool (126 589 04 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOL

Designation	e.g. company, order no.
Electric or pneumatic impact wrench with limited tightening torque of 100 Nm	Atlas-Copco D-7250 Leonberg Order no. LMS 26 HR 01
