Checking and adjusting axial play of connecting flange - AR35.31-P-0540-02A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Connecting flange/differential housing
| Number | Designation | Model 124 | Model 129 | Model 140 | Model 210 | |
|---|---|---|---|---|---|---|
| BE35.31-P-1001-05A | Axial play between connecting flange and differential housing | mm | 0.03 - 0.3 | 0.03 - 0.3 | 0.03 - 0.3 | 0.03 - 0.3 |

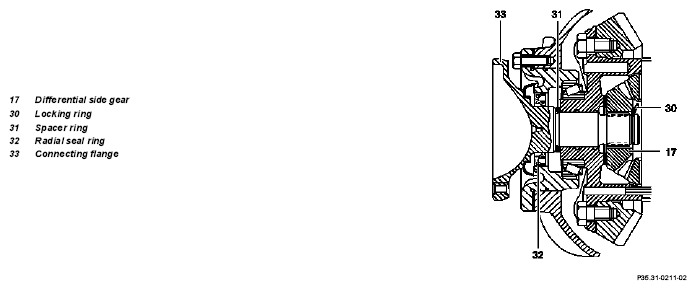

Check axial play between connecting flange (33) and differential side gear (17), if necessary, fit a spacer ring (31) of greater or lesser thickness.
The axial play must be within the specified tolerance range.
Spacer rings are available in thicknesses of 2.6 mm to 3.4 mm in graduations of 0.05 mm.
