Repairing ASD ring cylinder - AR35.41-P-0545D: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 124.008 /028 /029 /031 /032 /034 /036 /051 /052 /061 /066 /088 /091 /092, 129.058 up to 31.5.94, 129.061, 129.063, 140.028 /032 /033 up to 31.5.94, 140.1 with CODE (211) Rear axle with automatic locking differential (ASD)

RA-center piece, 210 mm dia  .

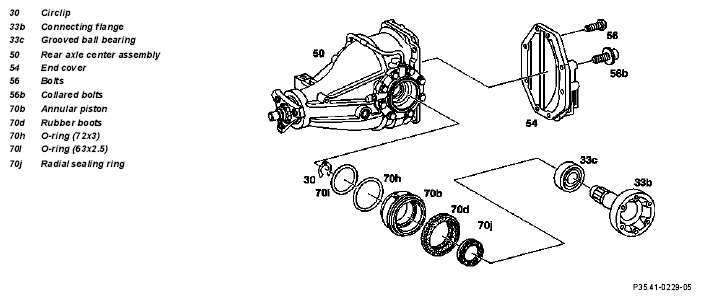

Fig 1: Identifying ASD Ring Cylinder Components
G04685233Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Raise vehicle with lifting platform
2 Drain oil from rear axle center assembly (50)   AR35.31-P-0520-06A
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
    TORQUE SPECIFICATION Oil drain plug *BA35.31-P-1003-02A
REFER TO COMPONENT MODIFICATIONS Oil filler and drain screw on rear axle center assembly modified as of 19.01.04 BT35.31-P-0015-01A
3 Remove rear axle center assembly (50) Model 124 ra35001240520x
    Model 129 AR35.31-P-0520C
    Model 140 AR35.31-P-0520A
REFER TO COMPONENT MODIFICATIONS Threaded bore for rpm sensor routed at rear axle housing   BT35.31-P-0004-01A
4 Detach end cover (54) IMPORTANTInstallation  : Clean installation and coat with sealing compound. *BR00.45-Z-1010-01A
    IMPORTANT Replace collar bolts (56b).
    TORQUE SPECIFICATION Collar bolts (56b), bolts (56) *BA35.31-P-1001-02A
5 Detach circlip (30)   AR35.31-P-0540-01A
    SPECIAL TOOL Removal and installation tool Figure
    SPECIAL TOOLInstallation  : Replace circlip.
6 Pull out connecting flange (33b) IMPORTANTInstallation  : Check contact surface for the radial sealing ring on the connecting flange, if there is severe galling: ↓ replace connecting flange
    IMPORTANT For vehicles with ASD, an axial play adjustment is not necessary.
REFER TO COMPONENT MODIFICATIONS Connecting flange with centering Model 124, 129, 140 BT35.31-P-0009-01A
7 Detach grooved ball bearing (33c)   AR35.31-P-0540-04A
    SPECIAL TOOL Puller Figure
    SPECIAL TOOL Tensioning clamp Figure
DISASSEMBLINGASSEMBLING Disassemble/assemble
8 Repairing ring cylinder IMPORTANT replace radial seal and smear sealing lip with universal hypoid gear oil: AR35.41-P-0545-04D
  Universal hypoid gear oils (SAE 85 W-90)   BB00.40-P-0235-07A
    Replace O-rings and coat with hydraulic fluid
  Hydraulic oils (Specification 343.0)   BB00.40-P-0343-00A
    SPECIAL TOOL Extractor tool Figure
    SPECIAL TOOL Drift Figure
    SPECIAL TOOL Pressing-in tool Figure
9 Install in the reverse order
10 Pour oil into the rear axle center assembly (50) Model 129, 124 AR35.31-P-0520-03A
    FLUID SPECIFICATION 129 *BF35.31-P-1001-01C
    FLUID SPECIFICATION 140 *BF35.31-P-1001-01A
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
    TORQUE SPECIFICATION Oil filler screw for rear axle center assembly *BA35.31-P-1002-02A
    Model 124 AR35.31-P-0520-03AA
    FLUID SPECIFICATION 124 *BF35.31-P-1001-01B
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
    TORQUE SPECIFICATION Oil filler screw for rear axle center assembly *BA35.31-P-1002-02A
REFER TO COMPONENT MODIFICATIONS Oil filler and drain screw on rear axle center assembly modified as of 19.01.04 BT35.31-P-0015-01A
11 Bleeding ASD hydraulic system Model 124 ra35001240519x
    Model 129 AR35.41-P-0519C
    Model 140 AR35.41-P-0519A
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 124 Model 129
BA35.31-P-1001-02A Bolt, end cover to rear axle center assembly Bolt+washer Nm 50 50
Flange bolt (TORX, internal serrations) Stage 1 Nm 30 30
2nd stage ∠ ° 45 45
BA35.31-P-1002-02A Oil filler plug, rear axle center assembly Nm 50 50
BA35.31-P-1003-02A Oil drain screw for rear axle center assembly Nm 50 50
TORQUE SPECIFICATION REAR AXLE CENTER ASSEMBLY HOUSING

Number Designation Model 140 Model 163
BA35.31-P-1001-02A Bolt, end cover to rear axle center assembly Bolt+washer Nm 50 -
Flange bolt (TORX, internal serrations) Stage 1 Nm 30 -
2nd stage ∠ ° 45 -
BA35.31-P-1002-02A Oil filler plug, rear axle center assembly Nm 50 50
BA35.31-P-1003-02A Oil drain screw for rear axle center assembly Nm 50 50
FLUID SPECIFICATION REAR FINAL-DRIVE UNIT

Number Designation Model Series 140.02/03 with (Code 211) ASD up to 05/94
BF35.31-P-1001-01A Filling capacity Rear axle center assembly Liter 1.3
Specifications for Operating Fluids Sheet -
Sheet BB00.40-P-0235-07A
FLUID SPECIFICATION REAR FINAL-DRIVE UNIT

Number Designation Model Series 140.1 with (Code 211) ASD
BF35.31-P-1001-01A Filling capacity Rear axle center assembly Liter 1.3
Specifications for Operating Fluids Sheet -
Sheet BB00.40-P-0235-07A
FLUID SPECIFICATION REAR FINAL-DRIVE UNIT

Number Designation Model 124.008/028/029/031/032/034/036/051/052/061/066/088/091/092 with (code 211) ASD
BF35.31-P-1001-01B Filling capacity Rear axle center assembly Liter 1.3
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A
Sheet -
FLUID SPECIFICATION REAR FINAL-DRIVE UNIT

Number Designation Model 129.058/061/063 with (Code 211) ASD up to 05/94
BF35.31-P-1001-01C Filling capacity Rear axle center assembly Liter 1.3
Specifications for Operating Fluids Sheet -
Sheet BB00.40-P-0235-07A
Fig 2: Identifying Removal And Installation Tool (116 589 01 62 00)
G04685234Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Puller (001 589 50 33 00)
G04685235Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Collet Chuck (140 589 00 34 00)
G04685236Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Extraction Tool (129 589 02 33 00)
G04685237Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Press-In Tool (124 589 01 35 00)
G04685238Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Drift (124 589 01 15 00)
G04685239Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-01A Sealant A 001 989 25 20
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) -
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
