Remove/install supporting joint on wheel carrier - AR35.20-P-0116-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

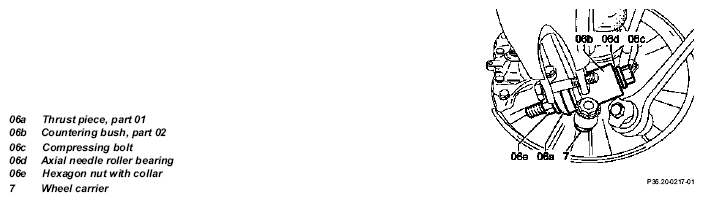

Fig 1: Identifying Removal And Installation Tool (202 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove supporting joint

Pull supporting joint out of wheel carrier (7) using removal and installation tool (06a to 06e).
Remove removal and installation tool (06a to 06e) and supporting joint.

Fig 2: Identifying Countering Bush, Compressing Bolt, Wheel Carrier And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install supporting joint
Put removal and installation tool (06b to 06f) and supporting joint (7a) on wheel carrier.
Insert supporting joint (7a) into wheel carrier from rear using removal and installation tool (06b to 06f).

Fig 3: Identifying Countering Bush, Compressing Bolt, Wheel Carrier And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insert supporting joint and thrust piece (06f), part 01 into wheel carrier until it lies against the machined lay-on surface (arrow).

The supporting joint has been properly inserted when it is in the center of the wheel carrier boss.

Fig 4: Locating Thrust Piece

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
