Remove/install track rod and replacement of rubber mount - AR35.20-P-0112A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140
MODIFICATION NOTES
| 3.5.07 | Self-locking nut, tie rod to wheel carrier, silver or blue M10 x 1,5 | New tightening torque applied, see Fig. item 4 | *BA35.20-P-1002-04A |
| Figure item, etc. | Work instructions | ||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the four columns of the vehicle lift and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer | AS00.00-Z-0010-01A | |
| Check toe at rear axle and adjust if necessary | AR40.20-P-0332A | ||

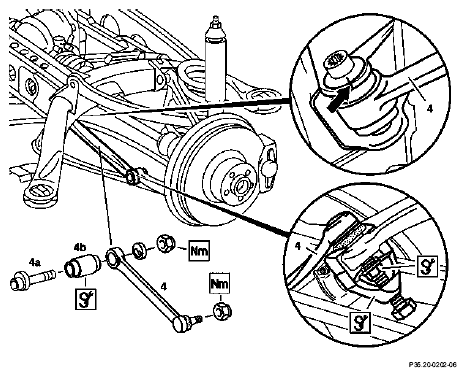

| 4 | Tie rod | ||
| Fig 4 | |||
Clean grease off ball head bolt and beveled seat in wheel carrier. Press ball head bolt into cone, hold with Allen wrench if necessary. |
Fig 2 | ||
| *BA35.20-P-1002-04A | |||
| Surface protection of track rod at wheel carrier modified | BT35.20-P-0004-01A | ||
| Bolted connection, track rod to wheel carrier modified | BT35.20-P-0009-01A | ||
| *BA35.20-P-1001-04A | |||
| 4a | Cam bolt | ||
| 4b | Rubber mount on track rod | ||
| Remove and install rubber mount on track rod | AR35.20-P-0112-01A |
| Number | Designation | Model 140 | |||
|---|---|---|---|---|---|
| BA35.20-P-1001-04A | Self-locking nut, track rod to rear axle carrier | Stage 1 | Nm | 70 | |
| Stage 2 | ∠° | - | |||
| BA35.20-P-1002-04A | Self-locking nut, tie rod at wheel carrier | yellow M10 X 1 | Nm | 30 | |
| silver or blue M10 X 1 | Nm | 25 | |||
| silver or blue M10 X 1.5 | Stage 1 | Nm | 20 | ||
| Stage 2 | ∠° | 45 | |||
