Remove/install radius rod - AR35.20-P-0111A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

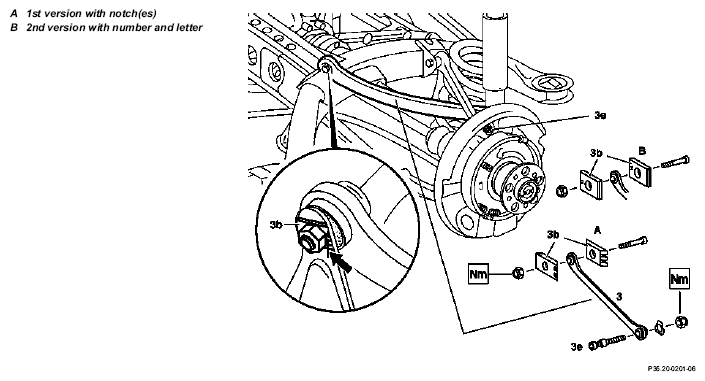

Fig 1: Identifying Radius Rod Components
G05437423Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

2.5.07 Self-locking nut, strut rod to rear axle carrier, M14   *BA35.20-P-1001-03A
25.5.07 Self-locking nut, torque strut to wheel carrier, M16   *BA35.20-P-1002-03A
Figure item, etc. Work instructions
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the four columns of the vehicle lift and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer AS00.00-Z-0010-01A
NOTESInstallation  Replace self-locking nuts
IMPORTANT Remove, install fixed brake caliper   AR42.10-P-1600DM
IMPORTANT Remove/install brake disc   AR42.10-P-0220A
3 Torque strut NOTESInstallation:  The rear axle shaft must be horizontal when tightening the nuts
    TORQUE SPECIFICATION Torque strut to wheel carrier *BA35.20-P-1002-03A
    TORQUE SPECIFICATION Torque strut to rear axle carrier *BA35.20-P-1001-03A
3b Mark eccentric disks in relation to rear axle carrier (arrow).
IMPORTANTInstallation:  Install disks with notch(es) at the back  and disks with number and letter at the front  in the direction of travel
IMPORTANT Eccentric washer offset 1 mm per notch, or on washers with number and letter corresponding to the number (e.g. 1 mm at 1N  ).
IMPORTANT Observe technical modifications: ↓
REFER TO COMPONENT MODIFICATIONS   Rear axle shaft diameter increased BT35.20-P-9404-01A
3e Fit-bolt NOTESInstallation:  Install new fitted bolt
TORQUE SPECIFICATION TORQUE STRUT

Number Designation Model 140
BA35.20-P-1001-03A Self-locking nut, tension arm to rear axle carrier M12 Nm 70
M14 Nm 120
BA35.20-P-1002-03A Self-locking nut, torque strut to wheel carrier M12 Nm 70
M16 Nm 230
