Rear axle, Checking and correction of oil level - wh3510pkw0000x(3510)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85
Illustrated on models 124, 201
Vehicles with ASD or 4MATIC

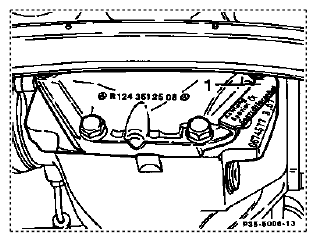

1 Identification plate for limited slip differential.
|
NOTE:
The vehicle must be level to change or check the oil level.
|
|
| Rear axle | check for leakage. |
|
NOTE:
In the event of high oil loss, determine cause and eliminate on separate order.
|
|

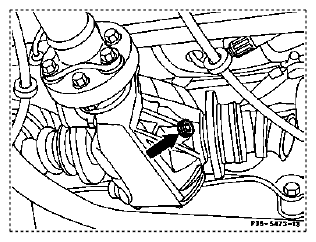

| Oil filler plug (arrow) | screw out, screw in, tightening torque 50 Nm. |
| Oil level | check. The oil level is okay when a small quantity of oil flows out, or when the oil level reaches up to the bottom edge of the thread in the filler hole, add oil, if required (see table for oil grades). |
OIL GRADES
| Differential without limited slip approved oils | Hypoid transmission oil SAE 90 see "Specifications for Service Products" |
| Differential with limited slip and vehicles with ASD or 4MATIC approved oils | Special hypoid transmission oil SAE 90 see |
| (observe identification plate on rear axle housing!) | "Specifications for Service Products" sheet 235.3 |
Special tool
COMMERCIALLY AVAILABLE TOOL
| Designation | e.g. company, order no. |
|---|---|
| Screwdriver attachment, 14 mm, 1/2" drive | Hazet D-5630 Remscheid 985-14 |
