Features, installation survey for rear axle center assemblies - GF35.31-P-1000-01E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Strengthened rear axle center assembly with 210 mm dia. crown wheel

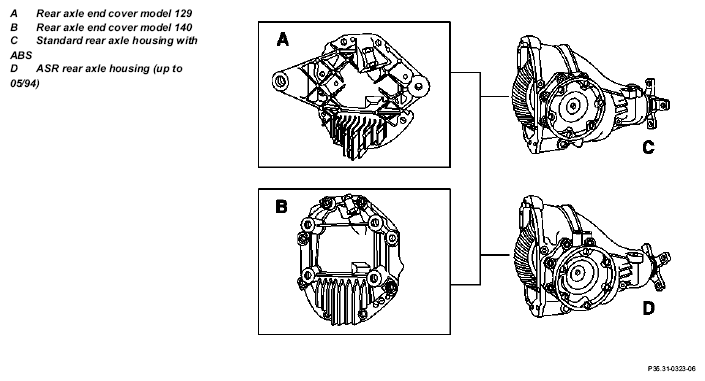

Fig 1: Identifying Rear Axle Center Assemblies

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Features

Breather on rear axle end cover
Widened side bearing cover
Connecting flanges with deep-groove ball bearing
Connecting flange with hole circle dia of 102 mm
Double bolted connection of drive pinion bearing
Hole circle dia. of 3- or 4-arm joint flange 110 mm
ASR speed sensor fixing on side bearing cover up to 05/94
Without ASR speed sensor fixing on side bearing cover as of 06/94 (speed sensor installed outwards relative to wheel carrier)

ASSIGNMENT OF MODEL/RATIO

Model/version	Special equipment code National version	Transmission version	Rear axle center assembly
Model/version	Special equipment code National version	Transmission version	Ratio	Number of teeth
129.067			2.65	45:17
129.076			2.65	45:17
	Gulf states		2.24	47:21
140.05			2.65	45:17
	Gulf states		2.24	47:21
140.07			2.65	45:17
	Gulf states		2.24	47:21
