Features, installation survey for rear axle center assemblies - GF35.31-P-1000-01D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

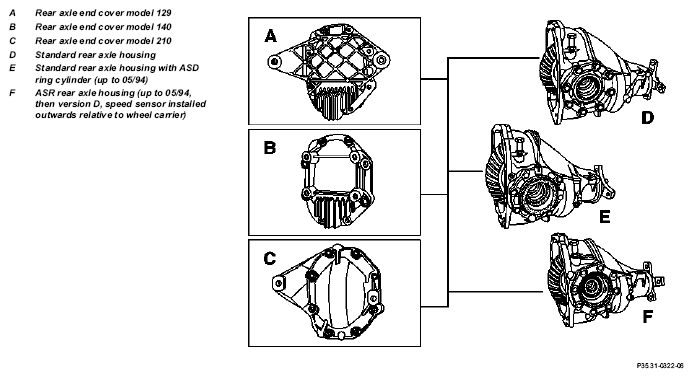

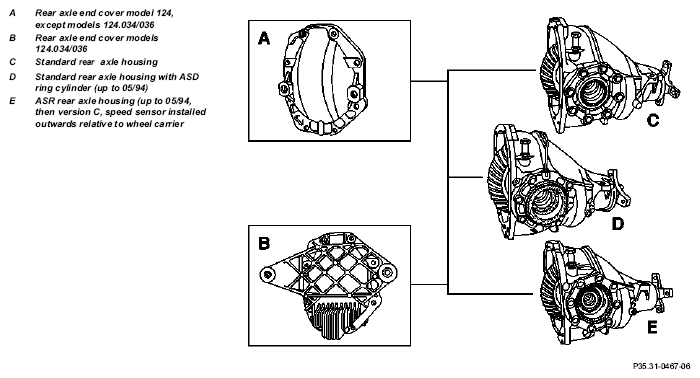

Rear axle center assembly with 210 mm dia. crown wheel
Features
- Breather on right of rear axle housing
- Side bearing cover secured by 8 hexagon or hexagon socket bolts
- As special equipment with ASD (up to 05/94)only models 124, 129, 140 or ASR
- Connecting flanges with hole circle dia. of 94 mm and 102 mm
- Hole circle dia. of joint flange 90, 100 and 110 mm, and with 3 and 4-arm joint flange (no 4-arm joint flange on ASD version)
Assignment of model/ratio
| Model/version | Special equipment code, national version | Transmission version | Rear axle center assembly | ||
|---|---|---|---|---|---|
| Ratio | Number of teeth | Number of teeth ABS gear on drive pinion | |||
| 124.008 | Manual | 3.92 | 47:12 | 24 | |
| Automatic | 3.46 | 45:13 | 28 | ||
| 124.028 | Manual | 3.69 | 48:13 | 26 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 3.69 | 48:13 | 26 | |||
| 5-speed automatic | |||||
| 124.029 | Manual | 3.92 | 47:12 | 24 | |
| Automatic | 3.46 | 45:13 | 28 | ||
| 124.031 | Manual | 3.27 | 49:15 | 29 | |
| 4-speed automatic | 3.27 | 49:15 | 29 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.032 | Manual | 3.06 | 52:17 | 31 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.034 | 2.65 | 45:17 | 36 | ||
| 124.036 | 2.82 | 48:17 | 34 | ||
| 124.051 | Manual | 3.27 | 49:15 | 29 | |
| 4-speed automatic | 3.27 | 49:15 | 29 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.052 | Manual | 3.06 | 52:17 | 31 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.061 | Manual | 3.27 | 49:15 | 29 | |
| 4-speed automatic | 3.27 | 49:15 | 29 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.066 | Manual | 3.06 | 52:17 | 31 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.088 | Manual | 3.69 | 48:13 | 26 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.091 | Manual | 3.46 | 45:13 | 28 | |
| 4-speed automatic | 3.46 | 45:13 | 28 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 124.092 | Manual | 3.06 | 52:17 | 31 | |
| 4-speed automatic | 3.06 | 52:17 | 31 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 129.058 up to 31.05.94 | Manual | 3.92 | 47:12 | 24 | |
| 4-speed automatic | 3.27 | 49:15 | 29 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 129.061 | Manual | 3.46 | 45:13 | 28 (up to 05/94) | |
| 4-speed automatic | 3.46 | 45:13 | 28 (up to 05/94) | ||
| 5-speed automatic | 3.69 | 48:13 | 26 (up to 05/94) | ||
| 129.058 up to 31.05.94 | 5-speed automatic | 3.69 | 48:13 | 26 | |
| 129.066 | 2.65 | 45:17 | 36 (up to 05/94) | ||
| 140.028 up to 31.05.94 | Manual | 3.92 | 47:12 | 24 | |
| 4-speed automatic | 3,46 | 45:13 | 28 | ||
| 5-speed automatic | 3.69 | 48:13 | 26 | ||
| 140.03 up to 31.05.94 | Manual | 3.46 (up to 07/93) | 45:13 | 28 | |
| 4-speed automatic | 3.27 (as of (8/93) | 49:15 | 29 | ||
| 5-speed automatic | 3.46 (up to 07/93) | 45:13 | 28 | ||
| 3.27 (as of 08/93) | 49:15 | 29 | |||
| 3.69 (up to 07/93) | 48:13 | 26 | |||
| 3.46 (as of 08/93) | 45:13 | 28 | |||
| 140.04/06 | 5-speed automatic (NAG) | 2.82 | 48:17 | 34 (up to 05/94) | |
| 140.134 | 4-speed automatic | 2.82 | 48:17 | 34 (up to 05/94) | |
| 140.135 | 5-speed automatic (NAG) | 3.27 | 49:15 | 29 (up to 05/94) | |
| 210.070/270 up to 31.01.98 | 5-speed automatic (NAG) | 2.82 | 48:17 | - | |
| 210.072/272 | 5-speed automatic (NAG) | 2,82 | 48:17 | - | |
| 210.074/274 up to 31.01.98 | 5-speed automatic (NAG) | 2,82 | 48:17 | - | |
| 210.617 | 5-speed automatic (NAG) Manual | 3.46 | 45:13 | - | |
| 3.46 | 45:13 | - | |||
