Removing and installing TELE AID emergency call system spare antenna - AR82.95-P-0004A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140.03 /04 /05 with CODE (348) TELE AID emergency call system
| Removal, installation | |||
|---|---|---|---|
| Notes on TELE AID emergency call system | Models 140, 210 | AH82.95-P-0001-01A | |
| 1 | Remove first-aid kit shell from rear shelf | ||
| 2 | Loosen paneling below rear shelf in trunk | ||

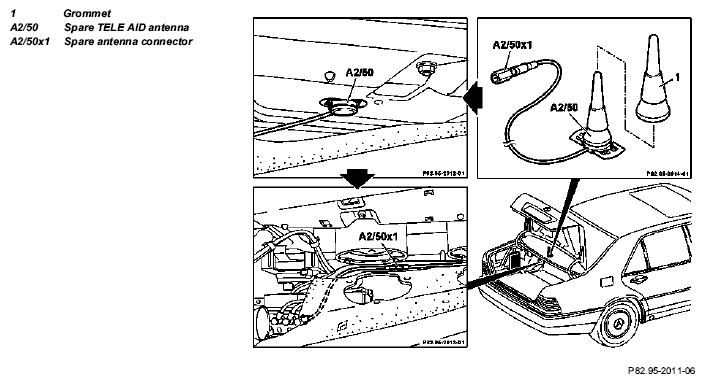

| 3 | Pull grommet (1) off of spare TELE AID antenna (A2/50) | Install grommet (1) with special tool |
Figure |
| 4 | Release spare antenna from below with special tool and remove downwards | Figure | |
| 5 | Loosen spare antenna connector (A2/50x1) | ||
| 6 | Install in opposite order |
