Removing and installing taillamp - ra82001404905x(4905)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 - A. Up to approx. 02/94, B. From approx. 03/94

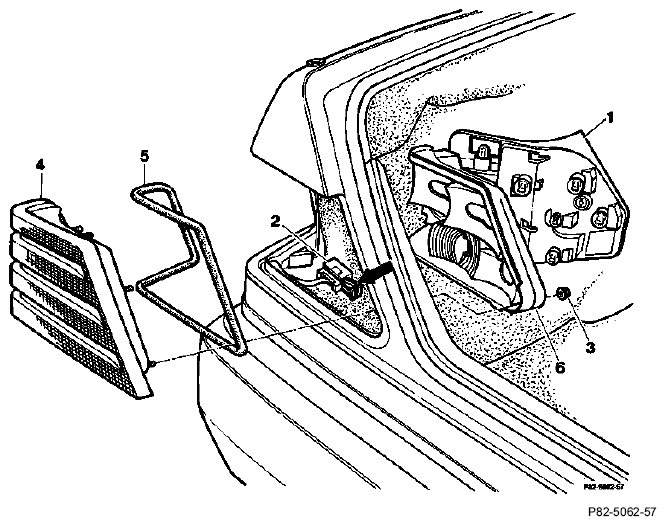

A. Removing and installing taillamp (up to approx. 02/94)
| Bulb carrier (1) | swing open, close by opening, closing lock. |
| Electrical connection (2) | take off, fit on by moving clip (arrow). |
| Nuts (3) | unscrew, screw on. |
| Lens (4) | take off to outside, insert from outside. |
| Rubber seal (5) | examine for signs of damage; ensure seal (5) is correctly inserted when installing. |
| Reflector (6) | take off to inside, insert from inside. |

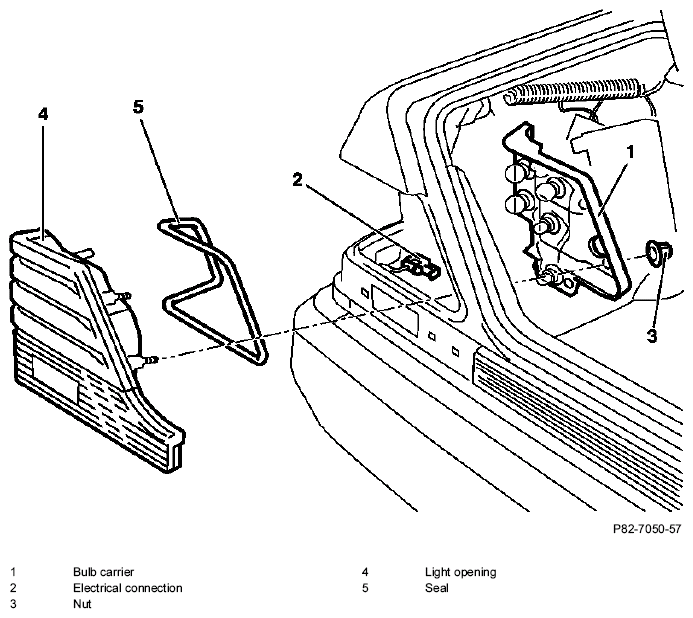

B. Removing and installing taillamp (as of approx. 03/94)
Preliminary work:
Left wheelhouse cover removed (68-480).
