Removing and installing rain sensor - ra82001400770x(0770)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Operation number of operation texts and work units or standard texts and flat rates

Illustration model 210

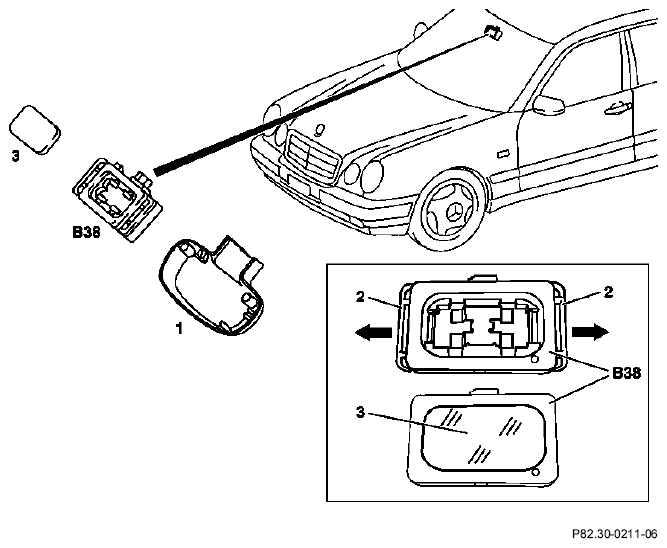

Fig 1: Identifying Rain Sensor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover (1)	remove.
Retaining clips (2)	unhook.
Rain sensor (3)	remove.

NOTE: Lens (4) is glued to windshield.

Do not replace!

Wiring harness	pull off.
Reinstall	in opposite order.
