Removing and installing motor for electric headlamp range adjustment with Xenon headlamps - ra82001404082x(4082)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Headlamp unit removed (82-4730)
Lens on headlamp removed (82-1820)
Headlamp reflector removed (82-2850).

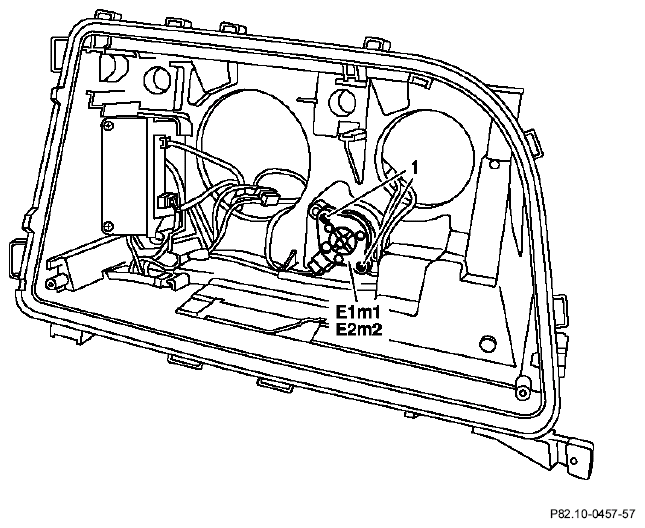

| Screws (1) | unscrew, screw in. |
| Electrical connection | disconnect, reconnect. |
| Headlamp range adjustment motors (E1m1, E2m1) | remove, install. |
