Removing and installing loudspeaker in base of mirror - ra82001407842x(7842)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Dome lamp with delay and reading lamp removed (82-0011).

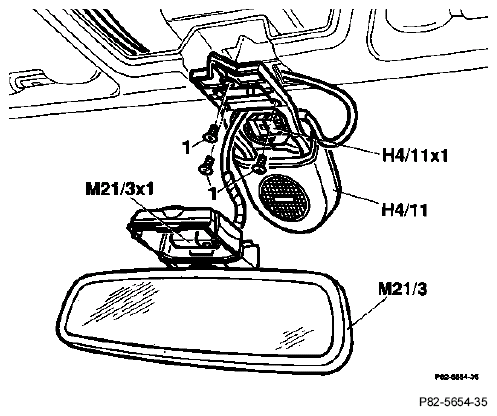

| Interior rear-view mirror (M21/3) | unclip, clip into place. |
| Connector (M21/3x1) of electrically adjustable interior mirror | separate, plug together. |
| Screws (1) | unscrew, screw in. |
| Speaker (H4/11) | take off, fit on. |
| Connector (H4/11x1) | separate, plug together. |
