Removing and installing lens of headlamp unit - ra82001401820x(1820)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
A. Standard headlamp up to 02/94, B. Standard headlamp from 03/94 and Xenon Model 140

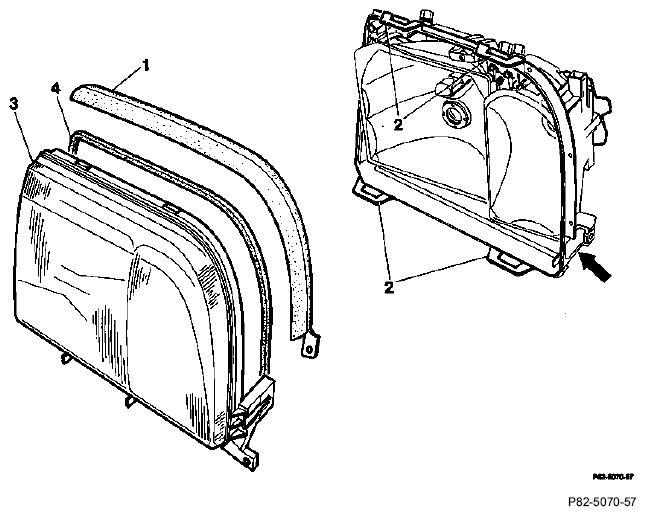

A. Standard headlamps up to approx. 02/94
Preliminary work:
Headlamp unit removed (82-4730).
| Rubber seal (1) | pull off, fit on. |
| Catches (2) | unclip, clip in place.
NOTE:
The catches (2) must be heard to engage when assembling.
|
| Lens (3) | take off, fit on. Ensure the guides on right and left (arrow) are correctly located.
NOTE:
The lens (3) forms a unit with the frame.
|
| Rubber seal (4) | examine for signs of damage; ensure seal (4) is correctly located when installing. |

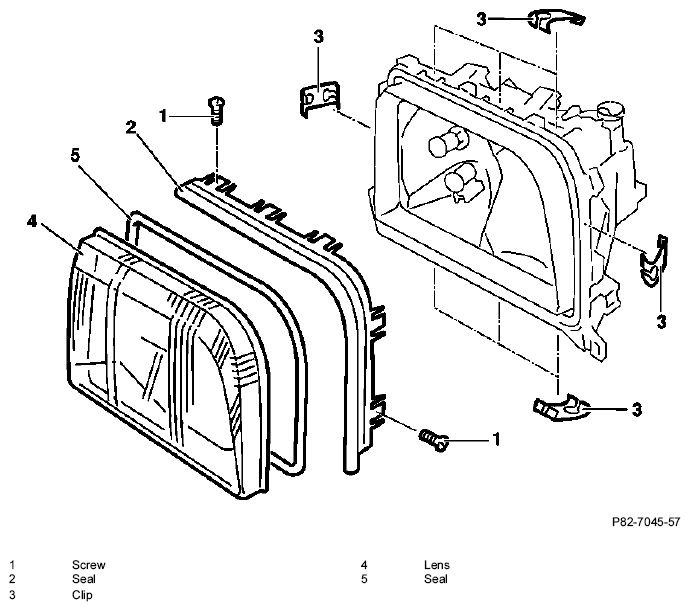

B. Standard headlamps as of approx. 03/94 and xenon headlamps
Preliminary work:
Headlamp unit removed (82-4730).
