Removing and installing front axle sensor for headlamp range adjustment with Xenon headlamps - ra82001404083x(4083)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

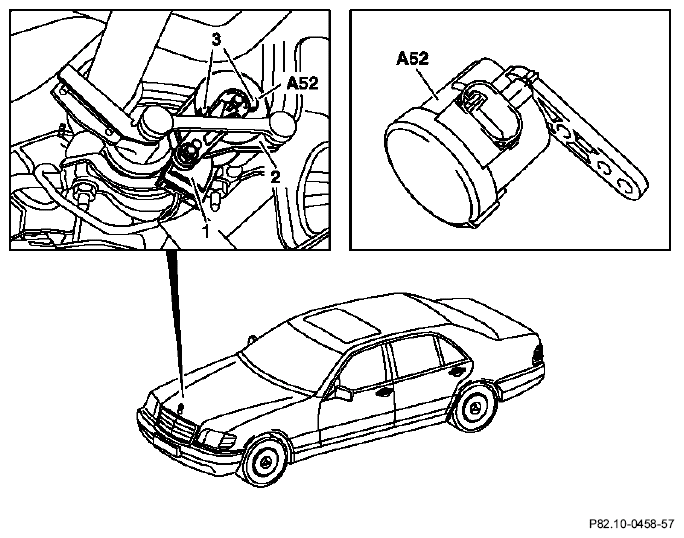

| Bottom engine compartment paneling | remove, reinstall. |
| Electrical connection (1) | disconnect, reconnect. |
| Connecting rod (2) | detach and unhook, hook in and fasten. |
| Screws (3) | unscrew, screw in. |
| Front axle sensor (A52) | remove, install.
NOTE:
Adjust xenon headlamps to zero position with HHT, see Diagnosis Manual, Body. Then check headlamp adjustment with adjustment unit and adjust as necessary, see Maintenance Manual, Volume 3.
|
