Removing and installing electric headlamp range adjustment control module for Xenon headlamps - ra82001404081x(4081)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Foot support in passenger footwell removed.

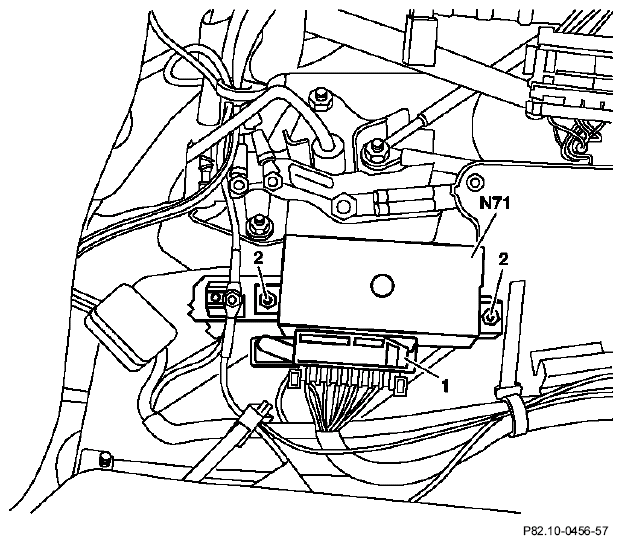

| Screws (2) | unscrew, screw in. |
| Connector (1) | disconnect, reconnect. |
| Headlamp range adjustment control module (N71) | remove, insert. |
| After installation of headlamp range adjustment control module (N71) | adjust headlamps to zero position with HHT, see Diagnosis Manual, Body. |
| Headlamp adjustment | check with adjustment unit and adjust if necessary, see Maintenance Manual, Volume 3. |
