Removing and installing bulbs in headlamp unit - ra820d1401201x(1201)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
D. Xenon headlamps, bulbs for high beams Model 140 (USA)
The glass sphere of the bulbs should not be touched with naked fingers; always use a soft, grease-free cloth.
When installing, ensure the bulbs are correctly seated.
D. Xenon headlamps , bulbs for high beams
When working on the headlamp unit ensure that the lights are switched off.
Lethal danger, high voltage
Never touch any conductive parts in the headlamp unit when the lamps are switched on.
NOTE:
If the xenon bulb (low beam) is defective, the headlamp unit must be replaced.

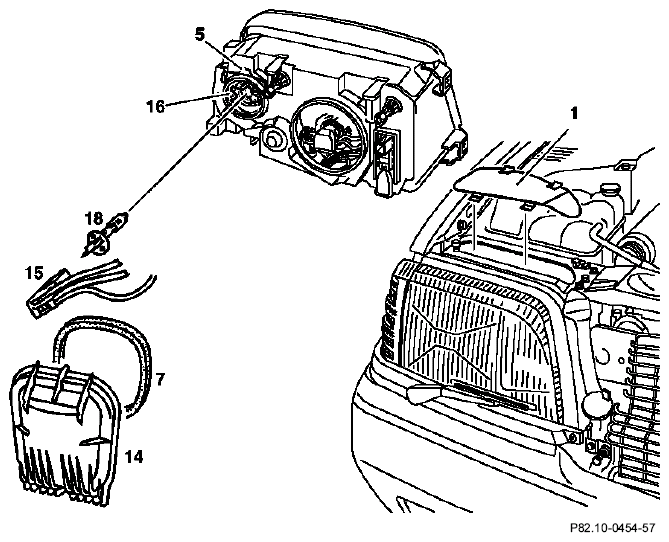

| Housing cover (14) | remove, reattach.
NOTE:
Check gasket (7) for damage, ensure that gasket is properly seated when reinstalling.
|
| Electrical connection (15) | disconnect, reconnect. |
| Retaining clip (16) | open, close. |
| H1 bulb (18) | remove, install new bulb. |
