Removing and installing CD player with changer - ra82001407507x(7507)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
A. CD player with changer, B. Mounting on CD player with changer Model 140

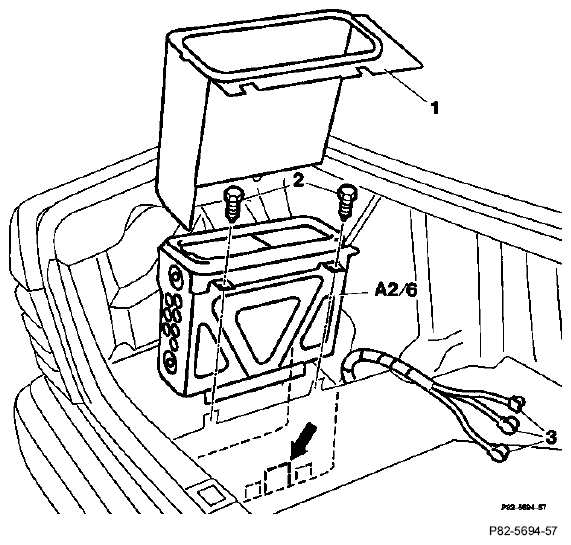

A. Removing and installing CD player with changer
| Quiescent current retention unit | disconnect, connect. |
| Ground cable at battery | disconnect, connect. |
| Cover (1) | remove, insert. |
| Bolts (2) | unscrew, screw in. |
| CD player with changer (A2/6) and mount | remove, insert. |
| Electrical connections (3) | disconnect, connect (changer for 10 CD's).
NOTE:
As of approx. 10.92 CD player with changer for 6 CD's and interface. As of approx. 09.93 CD player with changer for 6 CD's without interface. |
NOTE:
After connecting the battery, the following fault may occur. The store is no longer ejected, or no longer locks in place.
Cause:
The cause is a faulty mode detection in the CD player with changer.
Remedy:
Disconnect battery again.
Open door of store (1).
Press store eject button (2), hold pressed and at the same time connect battery.
The store eject mechanism is activated automatically and the store (3) is ejected.
Press in store (3) and close door (1). Perform functional check of CD player with changer.
COMMERCIALLY AVAILABLE TESTER
| Quiescent current retention unit | e.g. Hans Zeheter CMP 12.2 |
B. Removing and installing mounting on CD player with changer
| Bolts (1) | unscrew, screw in. |
| Mount (2) | remove, install.
NOTE:
As of approx. 09/95 a modified CD player with changer and a modified mounting will be installed.
|
