Remove and install switches for front and rear power seat adjustment - ra82001400865x(0865)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

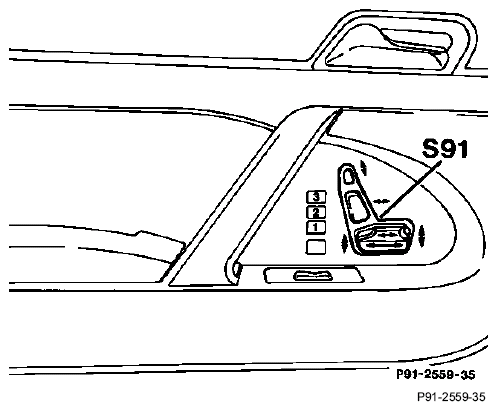

Fig 1: Identifying Front Power Seat Switch Components
G05440544Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

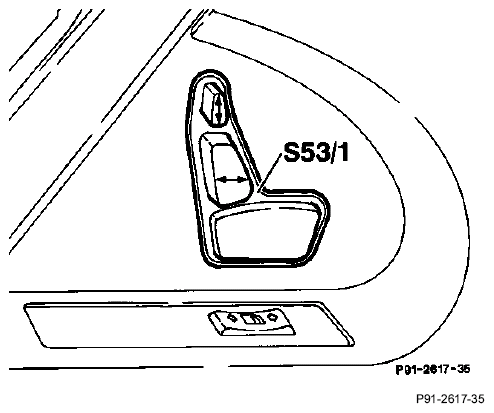

Fig 2: Identifying Rear Power Seat Switch Components
G05440545Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Removal and installation See Repair Manual 72-100 front door lining and 72-101 rear door lining.
6-pin connectors unplug, plug in.
