Remove and install infrared interior motion sensor control module (N26/3) - ra82001409840x(9840)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

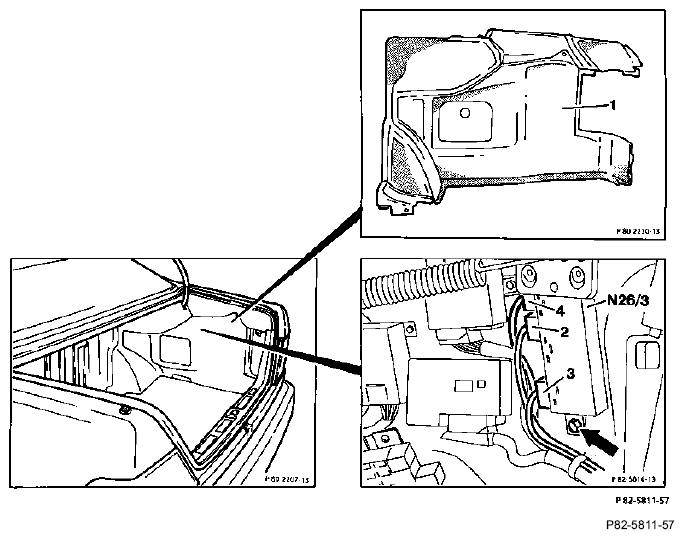

| Trim (1) in right of trunk | remove, install. |
| Screw (arrow) | unscrew, screw in. |
| Infrared interior motion sensor control module (N26/3) | remove, install. |
| Electrical connectors (2-4) | unplug, plug in. |
NOTE:
Perform function check, see Diagnosis Manual Body Volume 2.
