Removal and installation of windshield washer system reservoir - ra82001400700x(0700)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Front bumper removed (88-200).
Right lamp unit removed (82-052).
REMOVAL

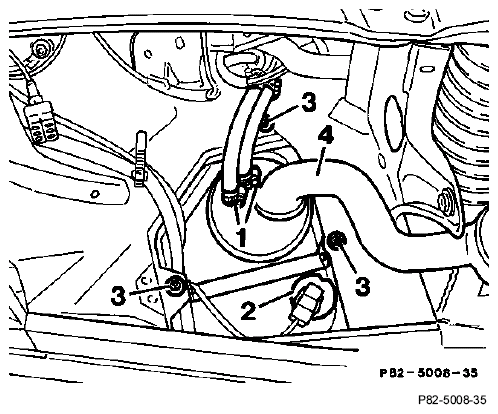

| Filler pipe (4) with bolt | unscrew and take out. |
| Lines to heat exchanger with screws (1) | slacken and pull off. |
| 4 bolts on engine compartment lining below | |
| washer reservoir | unscrew. |
| Washer fluid indicator (2) | withdraw. |
| Washer reservoir with nuts (3) | unscrew. |
| Washer reservoir | take out downwards. |
| Washer pump | withdraw. |
Installation
Installation is performed in reverse order.
NOTE:
Coat filler pipe (4) at reservoir with lubricant (e.g. soft soap) to ensure the rubber seal does not drop into the reservoir when the filler connection is pressed into the reservoir.
