Removal and installation of the license plate lamp - ra82001405161x(5161)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

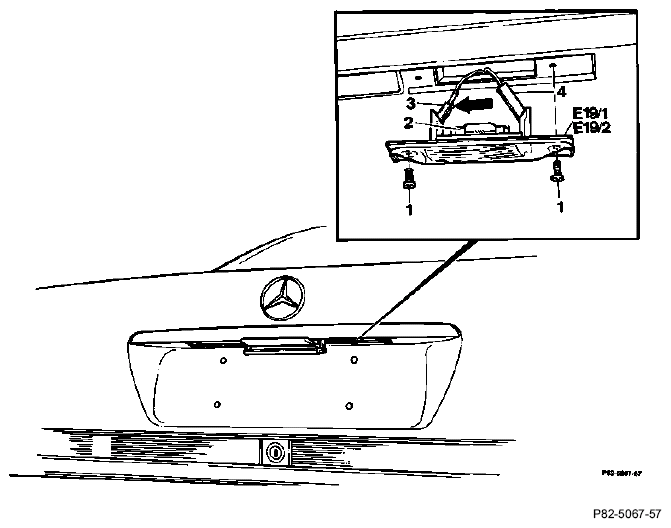

| Screws (1) | remove, screw in. |
| License plate lamp (E19/1, E19/2) | remove, insert.
NOTE:
When installing license plate lamp, ensure rubber seal is correctly located.
|
| Bulb (2) | remove from base, insert. |
| Electrical connections (3 and 4) | unplug, plug in.
NOTE:
The ground connection (3) has a locking element to prevent it being detached inadvertently (arrow).
|
