Removal and installation of the infrared (IR) transmitter and receiver unit, interior motion sensor (A26/4, A26/5) - ra82001409820x(9820)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

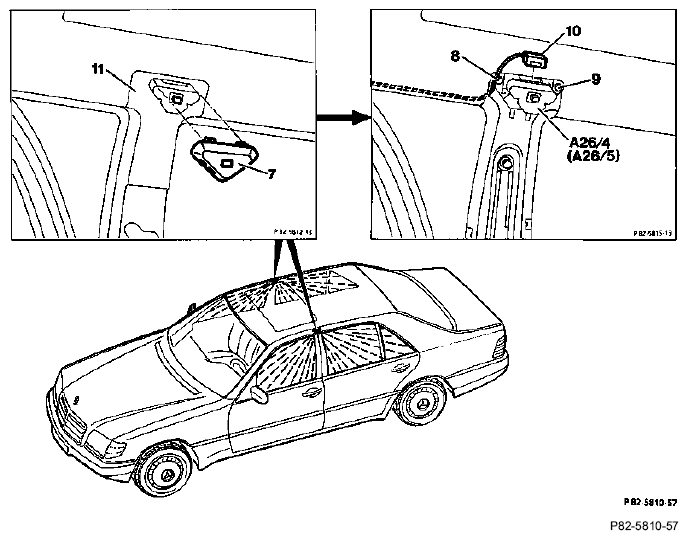

Fig 1: Identifying Infrared (IR) Transmitter And Receiver Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cap (7)	press off, press on. When installing, ensure cap locks in place properly.
Trim at top of center pillar (11)	remove (68-470).
Screws (8, 9) at transmitter and receiver unit (A26/4, A26/5)	unscrew, screw in.
Connector (10)	unplug, plug in.
Transmitter and receiver unit (A26/4, A26/5)	take off, fit on.

NOTE: Perform function check, see Diagnosis Manual Body Volume 1.
