Removal and installation of the fog lamp reflector - ra82001402930x(2930)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 (up to approx. 02/94)

Preliminary work:

Bulbs removed (82-1201).

Lens of lamp unit removed (82-1820).

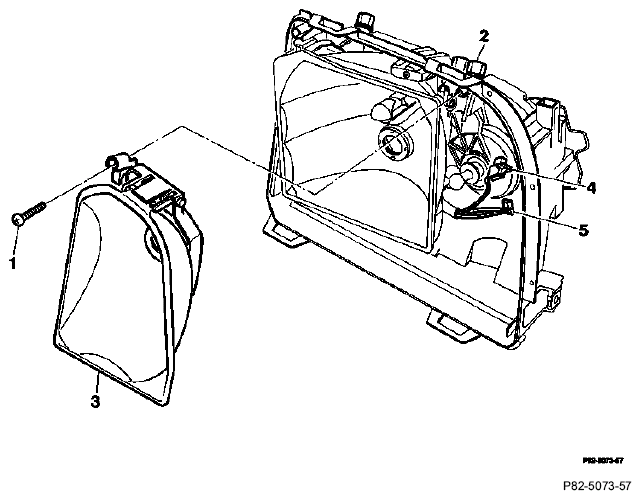

Fig 1: Identifying Fog Lamp Reflector Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw (1)	remove, screw in.
Adjusting screw for height adjustment (2)	unscrew, screw in.
Fog lamp reflector (3)	remove, insert.
Electrical connections (4 and 5)	unplug, plug in.
