Removal and installation of telescope of automatic antenna - ra82001408200x(8200)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

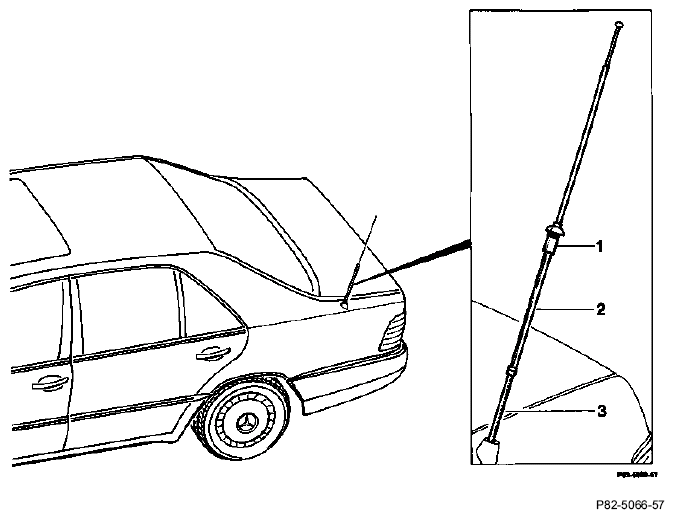

REMOVAL
| Fastening nut (1) | unscrew. |
| Radio | switch on (by 2nd person). Withdraw the extending telescope (2) with the plastic cable (3). |
INSTALLATION
| Plastic cable (3) | introduce with serrations opposite direction of travel. |
| Radio | switch off (by 2nd person). |
| Plastic cable (3) and telescope (2) | allow to retract fully. |
| Fastening nut (1) | screw on. |
