Removal and installation of telephone antenna in bumper - ra82001408950x(8950)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 (USA only)

Preliminary work:

Rear bumper removed (88-220).

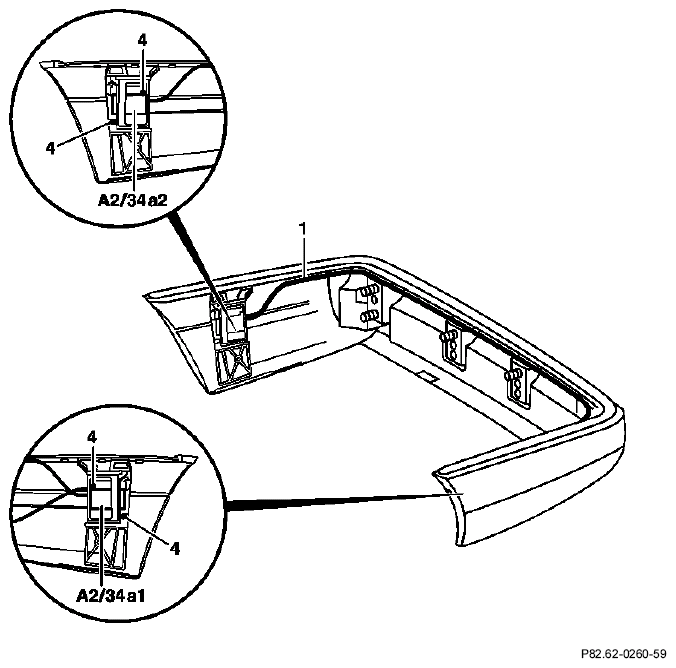

Fig 1: Identifying Telephone Antenna In Bumper Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Lead (1) in bumper	expose, fasten.
Pop rivets (4)	drill out of holder. NOTE: Position strip of sheet metal between holder and bumper to avoid damaging bumper. Coupe Each of the antenna elements is fastened with one pop rivet.
Antenna elements (A2/34a1, A2/34a2)	remove, install.
Antenna elements	fasten to holder with pop rivets (4)
