Removal and installation of rear make up mirror, rear reading lamp - ra82001400015x(0015)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

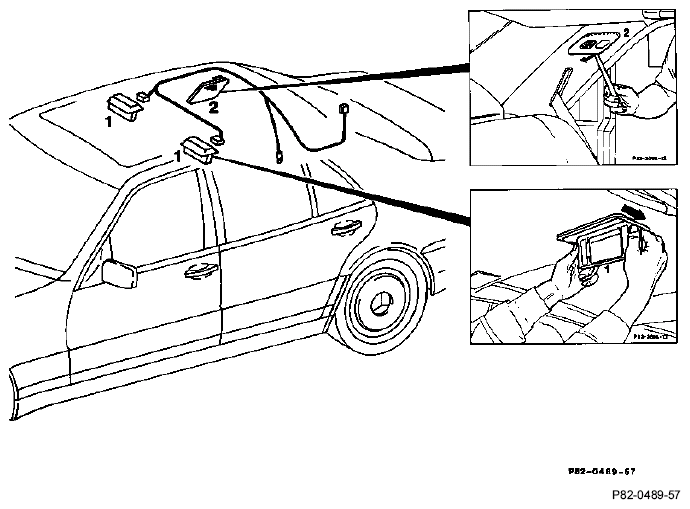

Fig 1: Identifying Rear Make-Up Mirror, Rear Reading Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Make-up mirror (1)	unclip, clip in.
2-pin connector	unplug, plug in.
Reading lamp (2)	unclip, clip in (with suitable tool).
3-pin connector	unplug, plug in.
