Removal and installation of rear make up mirror holding clip - ra82001400016x(0016)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

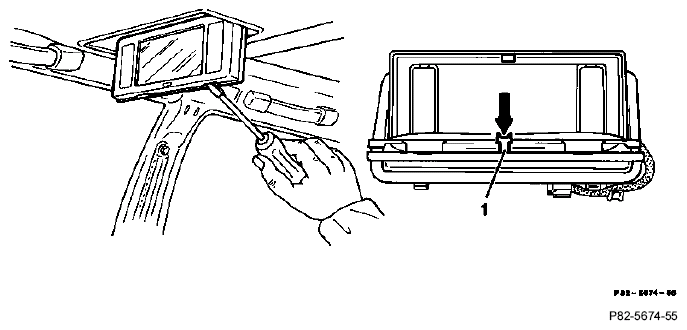

Fig 1: Identifying Clip For Holding Rear Make-Up Mirror Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Make-up mirror	fold open, fold closed.
Mirror housing	open with screwdriver, close.
Retaining clip (1)	unclip downward, clip into place.

NOTE: The catches of the retaining clip (1) may be bent! For this reason, lock the retaining clip (1) before closing the mirror housing (arrow). After closing, release the clip again so that it is not damaged when the make-up mirror is folded up. To do this, press clip in the middle with a small screwdriver or pin.
