Removal and installation of rear door speakers - ra82001407874x(7874)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A. Up to approx. 02/94, B. From approx. 03/94 Model 140

Preliminary work:

Rear door trim removed (72-101).

A. Removing and installing rear door speakers (up to approx. 02/94)

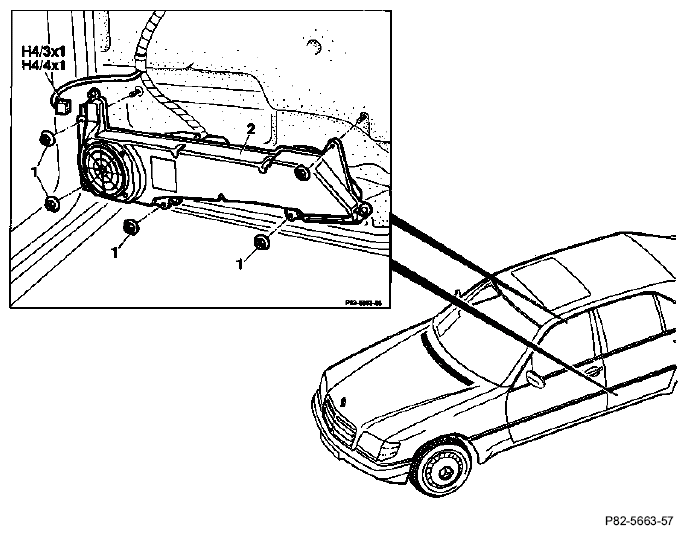

Fig 1: Identifying Rear Door Speakers Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Nuts (1)	unscrew, screw on.
Connector (H4/3x1, H4/4x1)	unplug, plug in.
Speaker with resonance body (2)	take off, fit on.

B. Removing and installing rear door speakers (as of approx. 03/94)

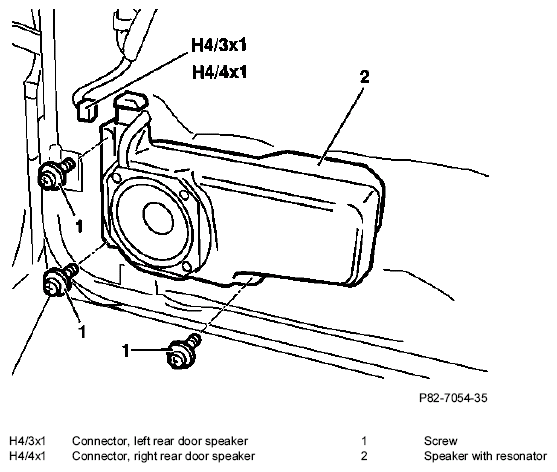

Fig 2: Identifying Rear Door Speakers Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
