Removal and installation of radio antenna in bumper - ra82001408180x(8180)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
88-220 Removing and installing rear bumper

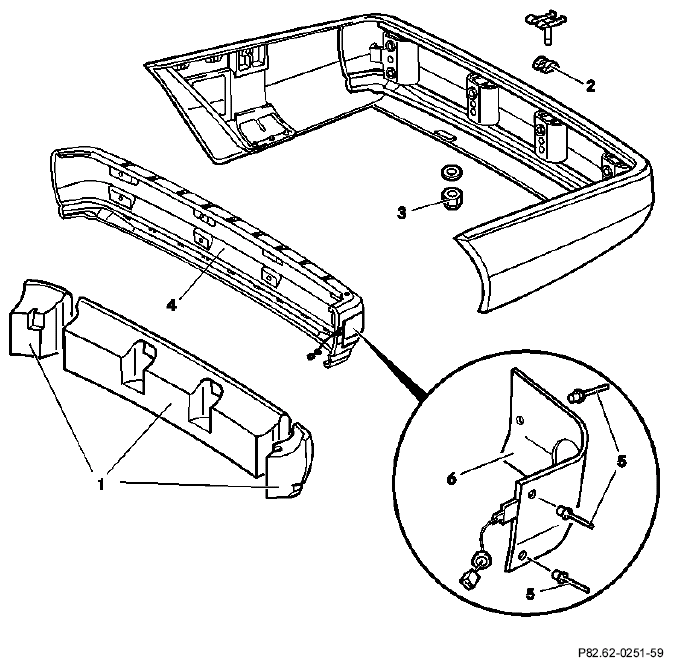

| Impact damper (1) | remove, install. |
| Clips (2) | remove, press on. |
| Nuts (3) | unscrew, screw on. |
| Reinforcement element (4) | remove, install. |
| Pop rivets (5) | drill out. |
| Antenna (6) | remove, install new antenna and fasten with pop rivets (5). |
