Removal and installation of navigation computer with CD-ROM (APS) - ra82001407410x(7410)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

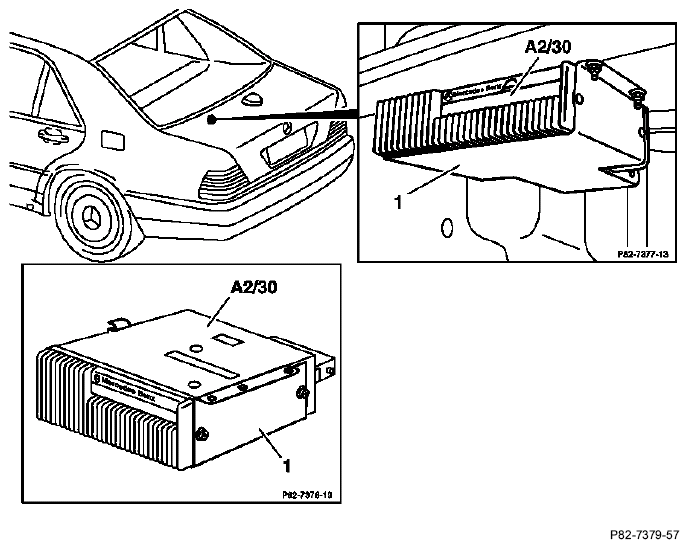

Model 140
Navigation processor up to approx. 11/96
Navigation processor as of approx. 12/96
| CD-ROM in navigation processor | remove (only when replacing navigation processor). |
| Quiescent current retention unit | disconnect, connect. |
| Ground cable at battery | disconnect, connect. |
| Holder (1) | remove, install. |
| Electrical connections on rear of navigation processor (A2/30) | disconnect, connect. (only for vehicles as of approx. 12/96) |
| Electrical connections on control module | disconnect, connect. (only for vehicles up to approx. 11/96) |
| Navigation processor | remove from holder (1) together with CD-ROM drive (A2/30), install
NOTE:
When replacing the navigation processor with CD-ROM drive (A2/30) the system must be put into operation, because it is necessary to store specific vehicle data. For vehicles with navigation processor up to 11/96 a test CD is required for this purpose. See Diagnosis Manual. Activation of the language requires approx. 30 minutes. |
COMMERCIALLY AVAILABLE TESTER
| Quiescent current retention unit | e.g. Hans Zeheter CMP 12.2 |
