Removal and installation of loudspeakers in the parcel shelf - ra82001407836x(7836)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
A. Standard system loudspeakers, B. Sound system loudspeakers Model 140
Preliminary work:
Parcel shelf removed (68-458).

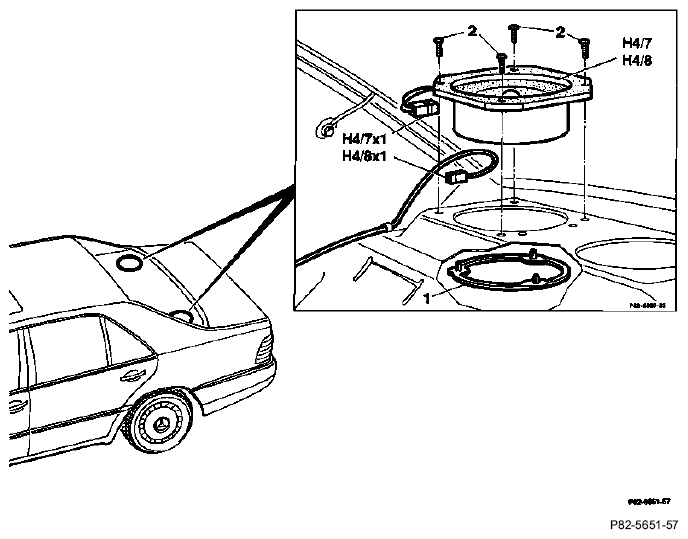

A. Removing and installing standard system speakers
| Mount (1) in trunk | unclip, clip into place. |
| Screws (2) | remove, screw in. |
| Speaker (H4/7, H4/8) | remove, insert. |
| Connector (H4/7x1, H4/8x1) | unplug, plug in. |

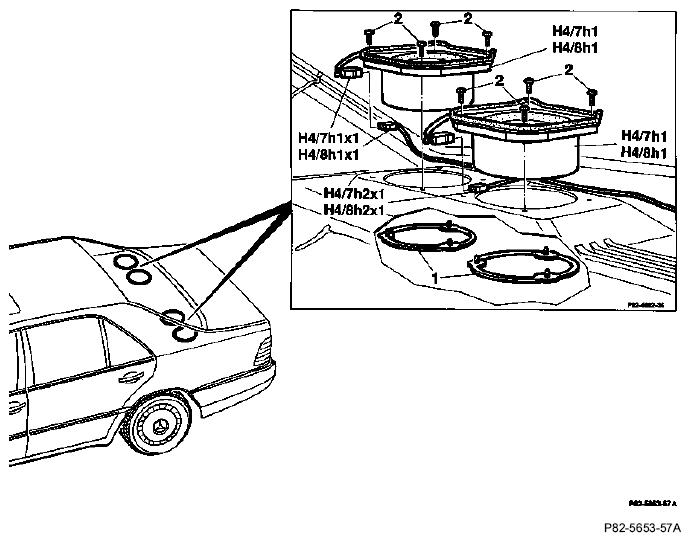

B. Removing and installing sound system speakers
| Mount (1) in trunk | unclip, clip into place. |
| Screws (2) | unscrew, screw in. |
| Speakers (H4/7h1, H4/7h2, H4/8h1, H4/8h2) | remove, insert. |
| Connector (H4/7h1x1, H4/7h2x1, H4/8h1x1, H4/8h2x1) | unplug, plug in. |
