Removal and installation of loudspeakers in instrument panel - ra82001407833x(7833)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

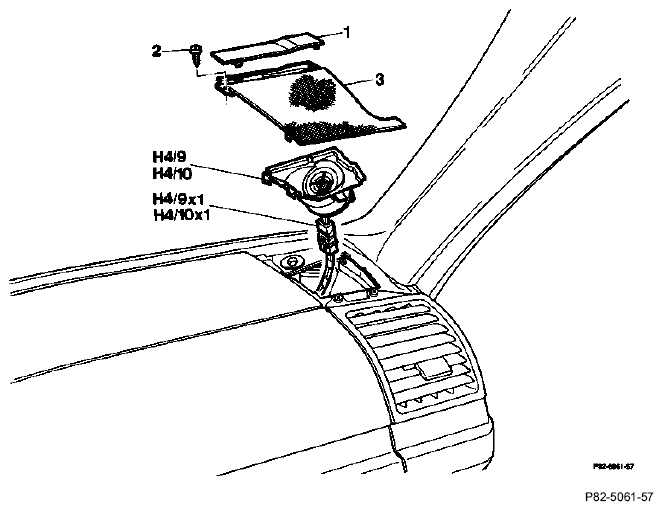

Fig 1: Identifying Loudspeakers In Instrument Panel Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Trim (1)	on inside, unclip, clip in.
Screw (2)	remove, screw in.
Cover (3)	take off, fit on.
Speaker (H4/9, H4/10)	remove, insert.
Connector (H4/9x1, H4/10x1)	unplug, plug in.
