Removal and installation of light strip (reverse lamp) - ra82001405381x(5381)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 to approx. 02/94

Preliminary work:

Trim at rear center section removed (68-485)

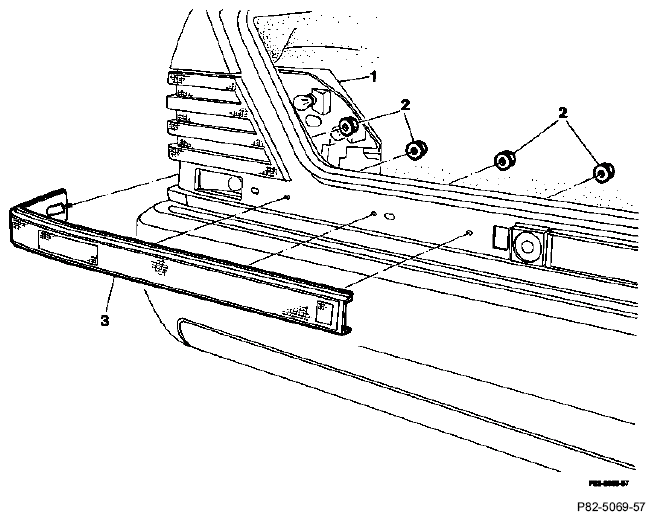

Fig 1: Identifying Light Strip Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Bulb carrier (1)	swing open, close by opening, closing lock.
Nuts (2)	unscrew, screw on.
Light strip (3)	take off, fit on.
