A. Up to approx. 02/94, B. From approx. 03/94 Model 140
Preliminary work:
Door lining removed (72-100).

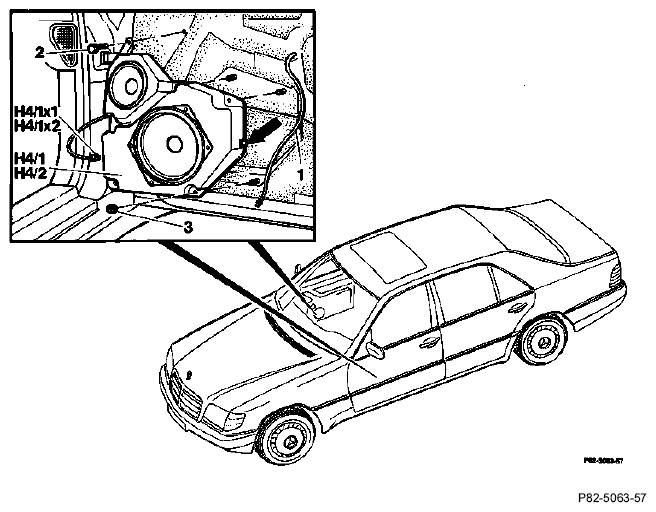

A. Removing and installing front door speakers (up to approx. 02/94)
| Cable (1) of entry/exit lamp | unclip, clip in place (arrow). |
| Screws (2) | remove, screw in. |
| Nuts (3) | unscrew, screw on. |
| Connector (H4/1x1, H4/2x1) | unplug, plug in. |
| Speaker group (H4/1, H4/2) | take off, fit on. |

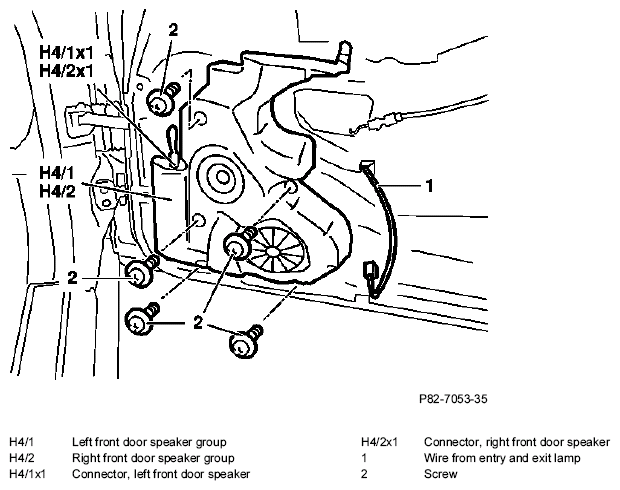

B. Removing and installing front door speakers (as of approx. 03/94)
