Removal and installation of center high mounted rear stop lamp - ra82001405375x(5375)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
A. Center high-mounted rear stop lamp, B. Center high-mounted rear stop lamp holder - Model 140

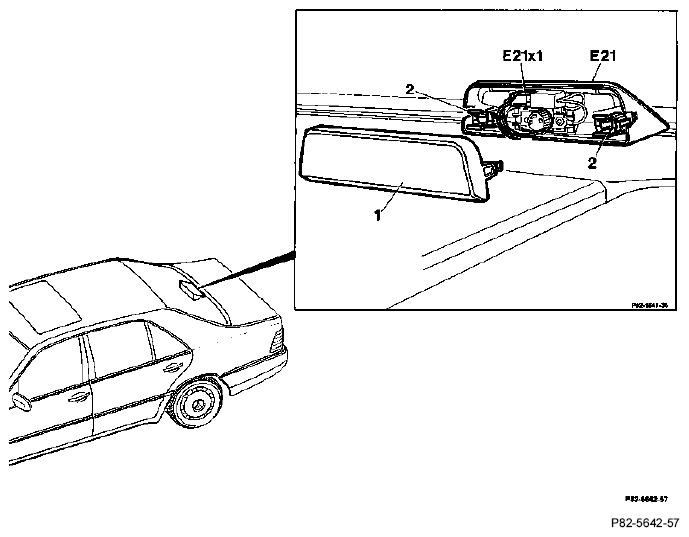

A. Removing and installing center high-mounted rear stop lamp
| Cover (1) on right and left | unclip, clip in. |
| Electrical connection (E21x1) | unplug, plug in. |
| Clips (2) | compress, allow to engage. |
| Center high-mounted rear stop lamp (E21) | pull off, fit on. |

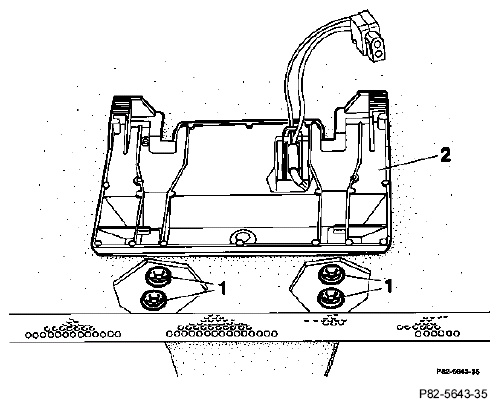

B. Removing and installing holder of center high-mounted rear stop lamp
Preliminary work:
Parcel shelf removed (68-458).
| Locking washers (1) | pull off, fit on. |
| Holder (2) | take off, fit on. |
