Removal and installation of bulb for center high mounted rear stop lamp - ra82001401219x(1219)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

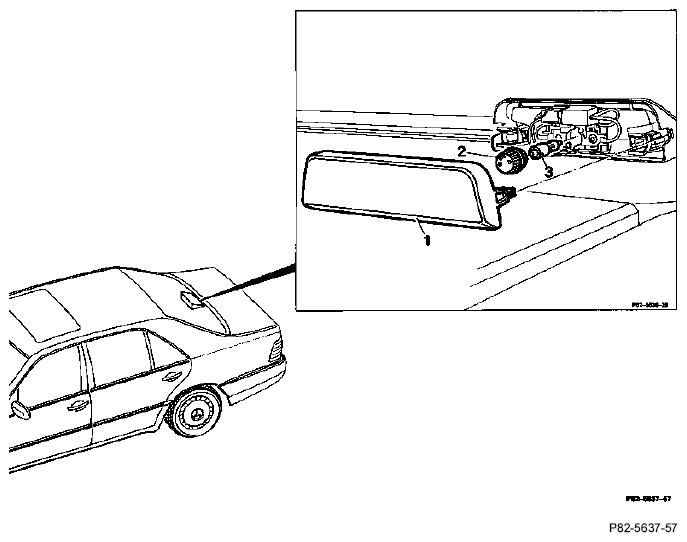

Fig 1: Identifying Bulb For Center High Mounted Rear Stop Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover (1) on right and left	unclip, clip into place.
Base (2) with bulb	turn 45° to the left, remove, insert, turn 45° to the right.
Bulb (3)	remove, insert.
