Electrical system - xenon headlamps, location of components - GF82.10-P-0002-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Models 129, 140, 208, 210 with code (612b) xenon headlamp unit

IMPORTANT The illustration shows model 210. The location is also valid for models 129, 140 and 208.

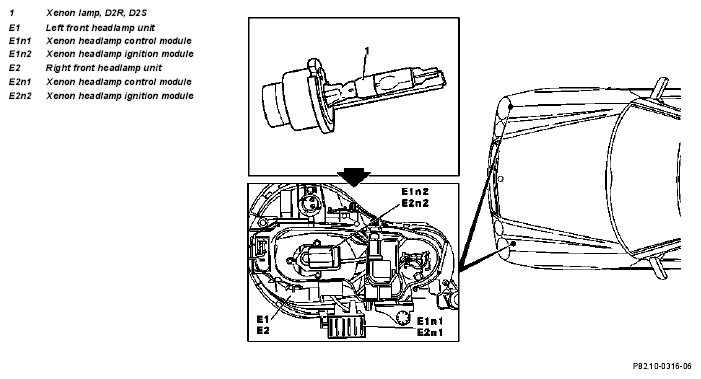

Fig 1: Identifying Electrical System - Xenon Headlamps Components
G04636832Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
