Removing and installing cover at gearshift lever - AR68.20-P-2310B
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140
with CODE (350b) Information and communication system (ICS)
with CODE (498) Japanese version
| Removing, installing | |||
|---|---|---|---|

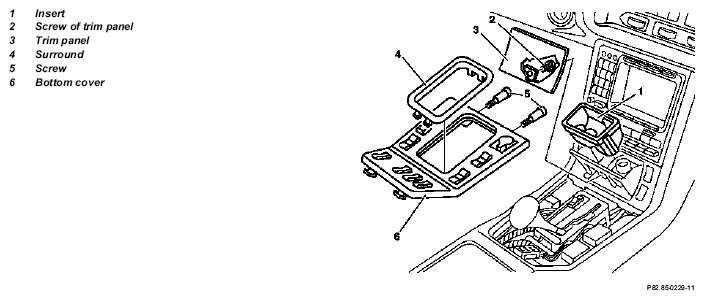

| 1 | Take insert (1) out of the ashtray | ||
| 2 | Slacken screw (2) of trim panel (3) and take off trim panel | ||
| 3 | Take off surround (4) at selector lever | ||
| 4 | Remove screws (5) | ||
| 5 | Raise bottom cover (6) in area of ashtray and take off to the front | ||
| 6 | Unplug electrical connections from the switches | ||
| 7 | Install in the reverse order |
