Removal, disassembly, installation of the armrest on the center console - ra68001400210x(0210)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

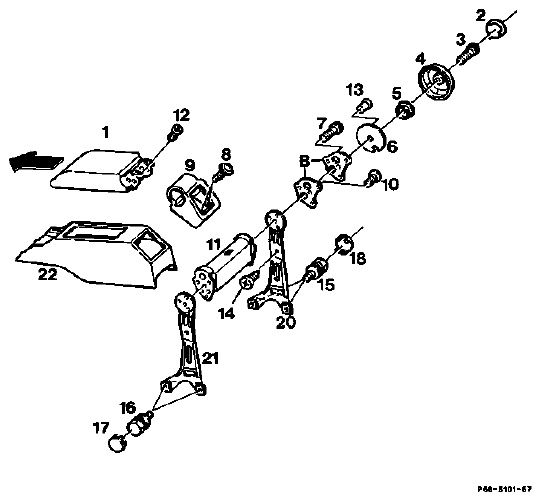

Fig 1: Identifying Armrest On Center Console Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover (2)	remove.
Screw (3)	screw out (2 each) TX 30.
Cover (4)	unclip and remove (2 each).
Socket (5) and leaf spring disc (6)	remove (2 each).
Armrest (1)	remove toward front. Observe installation note!
Reinstall	in opposite order.

Installation note

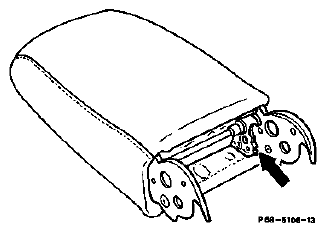

Before installing ensure that the lock on the armrest is pressed (arrows).

Fig 2: Locating Lock On Armrest

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Disassembly

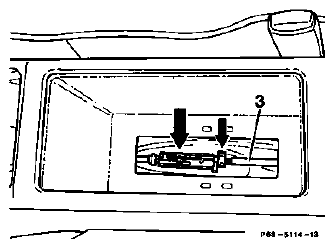

Unhook control cable (3) at front.

Fig 3: Identifying Control Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Unclip sliding cover (arrows) and remove (arrows).

Fig 4: Locating Sliding Cover
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

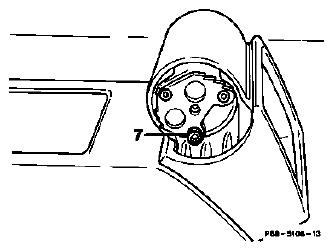

Screw out screw (7), (T45)

Fig 5: Identifying Screw
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (8). Unclip housing (9), (arrows) and remove housing (9) upward.

Fig 6: Locating Housing Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

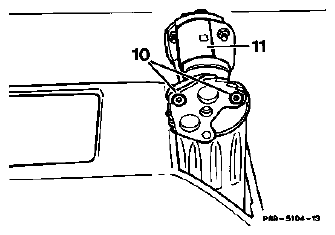

Screw out screws (10), TX 30 (4 each) on bearing (11) and remove bearing (11).

Fig 7: Locating Screws On Bearing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (12) and remove lock.

Fig 8: Identifying Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: The cover cannot be removed from the foam pad on the armrest. It is only possible to replace the cover completely together with the foam pad.

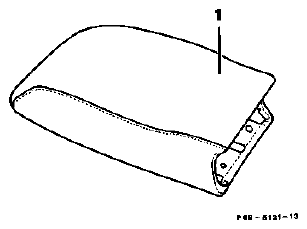

Fig 9: Identifying Foam Pad On Armrest
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Reassemble in opposite order.

NOTE: All screws with metric threads are micro-encapsulated and must be replaced after disassembly or coated with a screw locking agent (Loctite). Observe installation note!

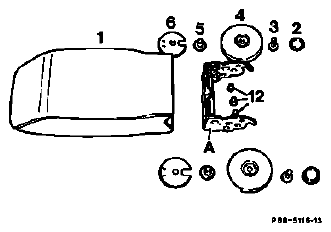

Fig 10: Identifying Foam Pad Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
