Removal and installation of the wooden roller blind on center console - ra68001400220x(0220)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

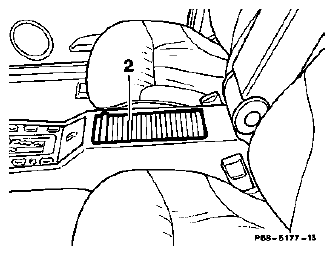

Fig 1: Locating Roller Blind

G05440307

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

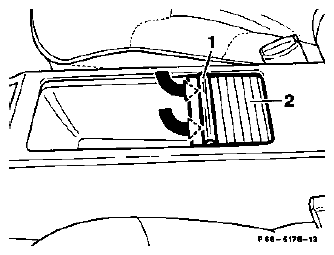

Fig 2: Identifying Grip On Wooden Roller Blind

G05440308

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

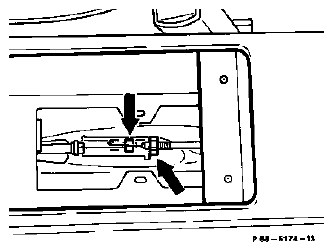

Fig 3: Identifying Wooden Roller Blind On Center Console

G05440309

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

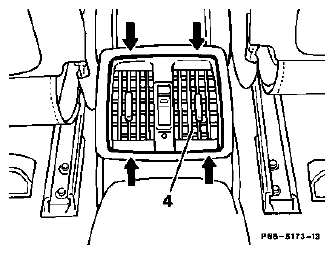

Fig 4: Locating Cable For Rear Area Nozzle

G05440310

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

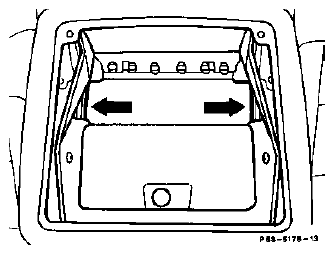

Fig 5: Locating Wooden Roller Blind

G05440311

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

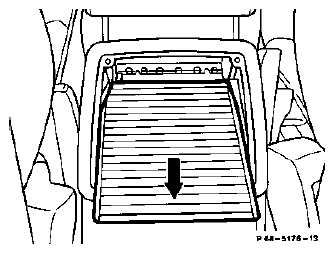

Fig 6: Locating Opened Roller Blind Tracks

G05440312

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Grip (1) on wooden roller blind (2)	remove, whilst opening wooden roller blind and unscrewing the cross-head screws (2 pieces) on the underside of the blind (Fig 6).
Insert in storage compartment	remove.
Cable for rear area nozzle (4)	unhook (Fig 6).
Rear area nozzle (4)	unclip (arrows, Fig 6) and remove rearwards together with the cable.
Wooden roller blind (2)	close.
Roller blind tracks on rear left and right	open (arrows, Fig 6).
Wooden roller blind (2)	withdraw rearwards from the opened roller blind tracks (Fig 6).
Installation	install in opposite order. It is essential to close the two track openings after installing the wooden roller blind.
