Removal and installation of the spectacles compartment - ra68001400155x(0155)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Spectacles compartment open
Lock cylinder for glove compartment removed (Removal and installation of the glove compartment lock cylinder )

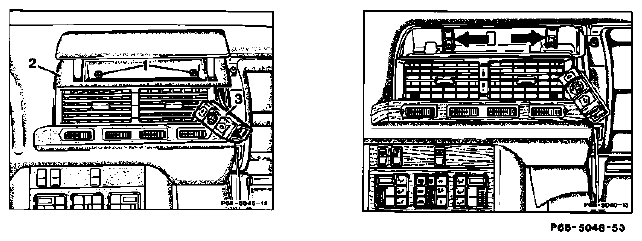

| Screw (1) | screw out (2 each). |
| Spectacles compartment (2) | pull out. |
| Spectacles compartment (2) | insert. |
| Screw (1) | screw in (2 each). |
| Lock cylinder (3) for glove compartment | install. |
| Function check | perform. |
