Removal and installation of the floor cover, front - ra68001400205x(0205)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A. Driver's side, B. Passenger's side Model 140

Driver's side

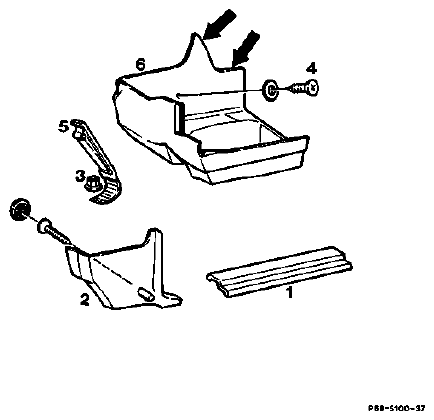

Fig 1: Identifying Floor Cover Front Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover (1) above side member	remove.
Driver's seat	move all the way back.
Covering (2) in footwell, outside	remove
Nut (3) and screw (4)	screw out.
Accelerator pedal (5)	remove from threaded stud.
Floor covering (6) on center console	pull out (arrows), then remove floor covering toward rear.
Reinstall	in opposite order.

Passenger side

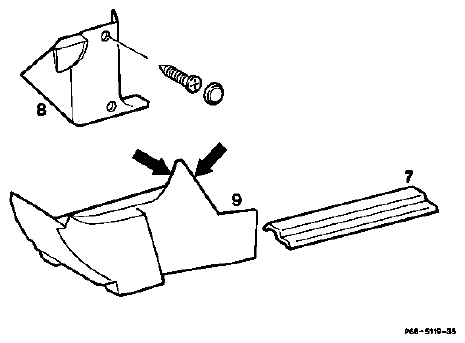

Fig 2: Identifying Floor Cover Passenger Side Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Passenger seat	move all the way back.
Cover (7) over main frame member	remove.
Panelling (8) in footwell, outside	remove.
Front section of floor covering	fold back.
Floor covering (9) on center console	pull out (arrows) and remove floor covering.
Reinstall	in opposite order.
