Disassembly and assembly of the glove compartment cover - ra68001400122x(0122)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Glove compartment cover removed (Removal and installation of the glove compartment cover )

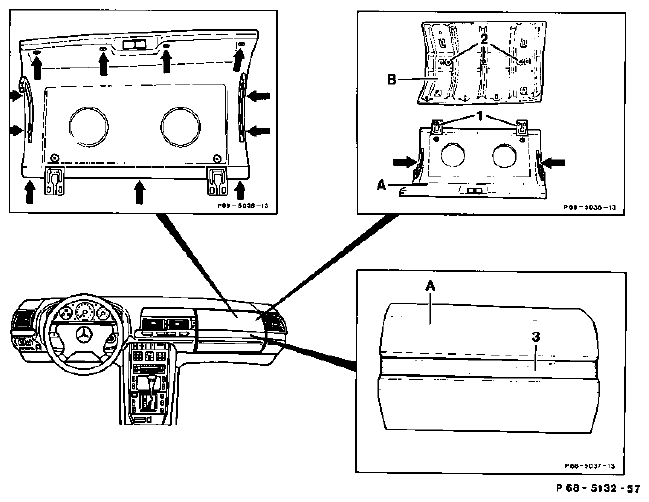

| Glove compartment cover | lay down on suitable surface. |
| Screws (arrows) | screw out and remove (11 each). |
| Housing inner section | remove from housing outer section. |
| Hinges (1) | screw off on housing inner section (2 screws, 2 insert clips). |
| Stop levers (arrows) | unclip and remove (2 each). |
| Nuts (2) on housing outer section | screw off (3 each). |
| Wooden trim strip (3) | remove from housing. |
| Reassemble | in opposite order |
