Mounting plate for securing transmission - WF58.50-P-2750-04A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 722

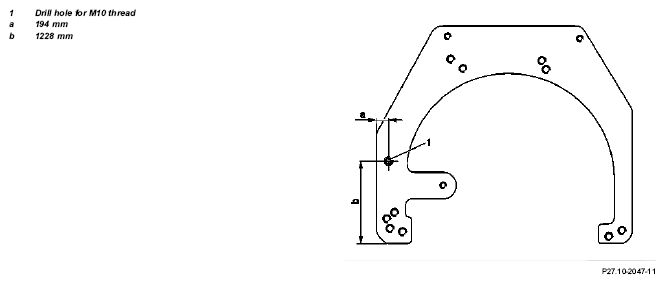

Fig 1: Identifying Mounting Plate Drill Hole & Dimensions
G04728765Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

For securing transmission 722.626 onto mounting plate

SPECIAL TOOL 140 589 34 63 00 an additional hole must be drilled in the mounting plate in accordance with the sketch.
