Removing and installing rear brake caliper - AR42.10-P-0080AM

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 129, 140, 170, 202, 208, 210 except CODE (957a) AMG engineering package

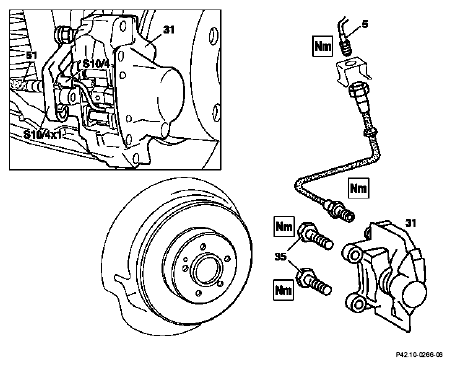

Fig 1: Identifying Rear Brake Caliper Components - Models 129, 140, 170, 202, 208, 210 Except Code (957a)
G04713704Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

29.7.99 Tightening torque changed for bolt, fixed caliper to wheel carrier (as of 10/97) BA42.10-P-1001-01A changed for models 129, 170, 208, 210. BT42.10-P-0001-02A
*BA42.10-P-1001-01A
29.7.99 Tightening torque changed, brake line to brake hose BA42.10-P-1001-04A changed from 18 Nm to 14 Nm for model 210 *BA42.10-P-1001-04A
19.10.00 Value changed from 70 to 55 Nm Value in BA42.10-P-1001-01A changed for models 202.028 with ASR, 202.033/093. *BA42.10-P-1001-01A
REMOVINGINSTALLING Removing, installing
DANGER Fatal injuries  are possible if the vehicle slips off the lifting platform Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on brake fluid   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
NOTES Notes on installation of brake hoses   AH42.10-P-9406-01A
1 Remove front wheels
REFER TO MAINTENANCE     AP40.10-P-4050Z
2 Disconnect brake hose (51) first from brake line (5) and then from fixed caliper (31) NOTES Seal connections immediately with plugs. Brake fluid reservoir must not empty completely.
    SPECIAL TOOL Box wrench for brake line Figure
    SPECIAL TOOL Box wrench for brake hose Figure
    TORQUE SPECIFICATION Brake line (5) to brake hose (51) *BA42.10-P-1001-04A
    TORQUE SPECIFICATION Brake hose to fixed caliper *BA42.10-P-1002-04A
REFER TO COMPONENT MODIFICATIONS Brake hose connection at brake line modified Models 202, 210 as of 09.95
NOTES The two versions are not interchangeable.		 BT42.10-P-0001-01A
3 Unplug right rear brake pad contact sensor (S10/4) from brake pad contact sensor connector (S10/4x1) NOTESInstallation:  Install contact sensor (S10/4) in transparent (temperature-resistant) version.
IMPORTANT On model 202.028 with ASR as of 09/95, the contact sensor on the rear fixed caliper is discontinued.
NOTES Notes on installing contact sensor for brake lining wear indicator   AH42.10-P-0003-01A
4 Unscrew rear right brake pad contact sensor connector (S10/4x1)
5 Unscrew fixed caliper (31) from wheel carrier NOTESInstallation:  Replace micro-encapsulated bolts (35).
    TORQUE SPECIFICATION *BA42.10-P-1001-01A
6 Install in the reverse order
7 Bleed brake system   AR42.10-P-0010A
8 Check brake system for leaks   AR42.10-P-0100-01A
TORQUE SPECIFICATION REAR AXLE FIXED CALIPER

Number Designation Model 129.05/06 0/061/063/ 064/066/ 067 Model 129.068/ 076 Model 140
BA42.10-P-1001-01A Self-locking bolt, fixed caliper to wheel carrier Nm 55 55 115
TORQUE SPECIFICATION REAR AXLE FIXED CALIPER

Number Designation Model 170.435/ 444/445/ 447/449/ 465 Model 170.466 Models 202.01/020/ 022/023/024/ 025/026/029/ 078/08/12/13/ 18/19, 202.028 without ASR
BA42.10-P-1001-01A Self-locking bolt, fixed caliper to wheel carrier Nm 55 115 55
TORQUE SPECIFICATION REAR AXLE FIXED CALIPER

Number Designation Models 202.028 with ASR, 202.033/093 Model 208.335/ 344/345/347/ 348/365/370/ 374/435/444/ 445/447/448/ 465/470
BA42.10-P-1001-01A Self-locking bolt, fixed caliper to wheel carrier Nm 55 55
TORQUE SPECIFICATION REAR AXLE FIXED CALIPER

Number Designation Model 210.00/01/ 02/03/04/05/06/ 070/072/074/08 Model 210.20/21/ 22/23/24/26/ 270/272/28/60/ 61/663 Model 210.274
BA42.10-P-1001-01A Self-locking bolt, fixed caliper to wheel carrier Nm 55 115 55
TORQUE SPECIFICATION BRAKE LINES, BRAKE HOSES

Number Designation Model 129 Model 140 Model 170
BA42.10-P-1001-04A Brake line to brake hose Nm 14 14 14
BA42.10-P-1002-04A Brake hose to fixed or floating caliper Nm 18 18 18
TORQUE SPECIFICATION BRAKE LINES, BRAKE HOSES

Number Designation Model 202 Model 208 Model 210
BA42.10-P-1001-04A Brake line to brake hose Nm 14 14 14
BA42.10-P-1002-04A Brake hose to fixed or floating caliper Nm 18 18 18
Fig 2: Identifying Box Wrench (000 589 75 03 00)
G04713705Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Box Wrench (000 589 76 03 00)
G04713706Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
