Carrying out bleeding operation - AR42.10-P-0010-02E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
DANGER Risk of poisoning caused by swallowing brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Model 129.05/ 060/ 061/063/ 064/066/ 067 Model 129.068/ 076 Model 140
BA42.10-P-1002-01A Bleed screw on rear axle fixed brake caliper Nm 7 7 7
TORQUE SPECIFICATION FIXED CALIPER AT REAR

Number Designation Model 210.00/01/ 02/03/04/05/06/ 070/072/074/08 Model 210.20/21/ 22/23/24/26 / 270/272/28/60 / 61/663
BA42.10-P-1002-01A Bleed screw on rear axle fixed brake caliper Nm 7 7
TORQUE SPECIFICATION FRONT AXLE FIXED BRAKE CALIPER

Number Designation Model 129 Model 140 Model 210.072/270/272 up to 07.02.99, model 210.070 up to 07.02.99 except USA ONLYJAPAN ONLYAUSTRALIA ONLY
BA42.10-P-1002-02A Bleed screw at front axle fixed brake caliper Nm 7 7 7
TORQUE SPECIFICATION FRONT AXLE FLOATING CALIPER

Number Designation Model 210.072/074/ 272/274
BA42.10-P-1002-03A Bleed screw at front axle floating caliper Nm 7
Fig 1: Identifying Socket Wrench (140 589 03 09 00)
G04713686Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Connect handheld tester (087) with test cable (Multiplexer) (094) to the diagnostic data link connector (X11/4).
  2. Switch on ignition.
  3. Carry out the bleeding process as per the instructions in the HHT display : Menu item Bleed brake system.
  4. Disconnect HHT

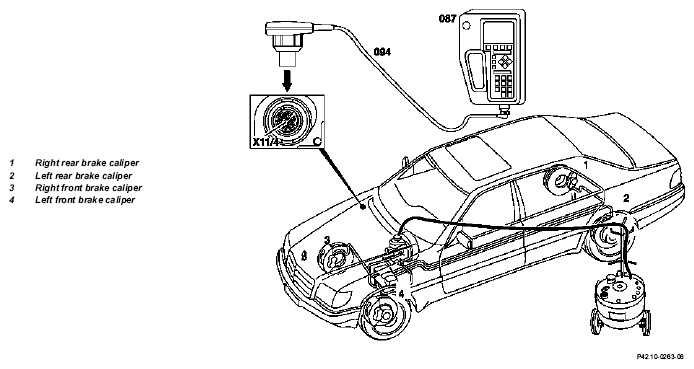

    Fig 2: Identifying Bleeding Operation On Brake Caliper
    G04713687Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
