Removal and installation of left or right rear axle speed sensors (L6/3, L6/4) - RA42001400820X(42-0820)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation no. of operation texts and work units or standard texts and flat rates

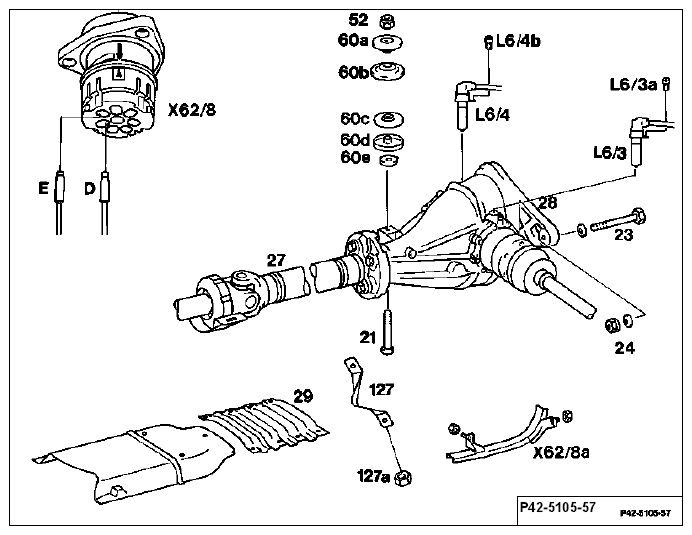

Fig 1: Identifying Right Rear Axle Speed Sensors Components
G04685798Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cable guide rail (X62/8a) detach, install at rear axle support. Do not subject cable to tension (item 1)
Rear axle centerpiece assembly (28) support with vehicle jack (item 2).
Unscrew self-locking nuts (24).
Unscrew bolt (23) slightly rearwards.
When installing, replace self-locking nut (24), 95 Nm (item 3).
Ring wrench insertion tool 129 589 01 03 00, torque wrench 001 589 66 21 00.
Hexagon socket screw (21) unscrew, screw in.
When installing, ensure correct sequence of suspension points. Replace self-locking nut (52), 45 Nm.
Rear axle centerpiece assembly (28) lower with propeller shaft, until the propeller shaft contacts the tunnel closing panel (29) or retaining bracket for seat belt fixing (27), (item 7).
Self-locking hexagon socket screws (L6/3a, L6/4b). unscrew, screw in.
Withdraw left or right wheel speed sensor (L6/3 or L6/4) (refer to notes on wheel speed sensors) vertically upwards. Do not subject cables of the left or right wheel speed sensors (L6/3 or L6/4) to tension.
When installing ensure cleanliness of magnetic edges on the wheel speed sensors (L6/3 or L6/4). Replace self-locking hexagon socket screws and O-rings, 8 Nm (item 6).
Cover of plug connection, rear axle distributor (X62/8) remove, install.
Plug connection, rear axle distributor (X62/8) Plugs (E and D) detach, assemble.
remove, install. When installing, note plug assignment.
ASR electrics/electronics test program
Models 124.034/36, 129.067/076, 140
Fault memory
perform (42-0822 or Diagnosis Manual - Chassis). readout and erase in accordance with Diagnosis Manual - Chassis).

Special tools

Fig 2: Identifying Special Tools (129 589 01 03 00 35)
G04685799Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Special Tools (001 589 66 21 00 00)
G04685800Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal, installation

  1. Unscrew self-locking nuts (arrows). Remove cable guide rail (X68/8b).

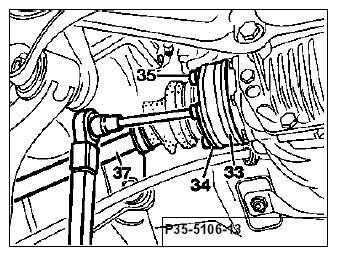

    Fig 4: Identifying Self-Locking Nuts
    G04685801Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Raise rear axle centerpiece assembly (28) using vehicle jack or pit lift.
  3. Unscrew self-locking nut (24). Unscrew the screw (23) slightly to the rear.

    Installation note

    Renew self-locking nut (24), 95 Nm.

    Ring wrench insertion tool, 129 589 01 03 00 Torque wrench 001 589 66 21 00.

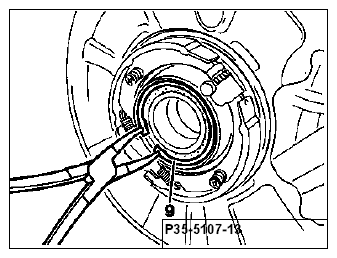

    Fig 5: Identifying Self-Locking Nut
    G04685802Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. Unscrew hexagon socket screw (53) and remove with the suspension parts (60a, 60b, 60c, 60d and 60e).

    Installation note

    Ensure correct sequence of suspension parts. Renew self-locking hexagon nut (52), 45 Nm. Torque wrench 001 589 66 21 00.

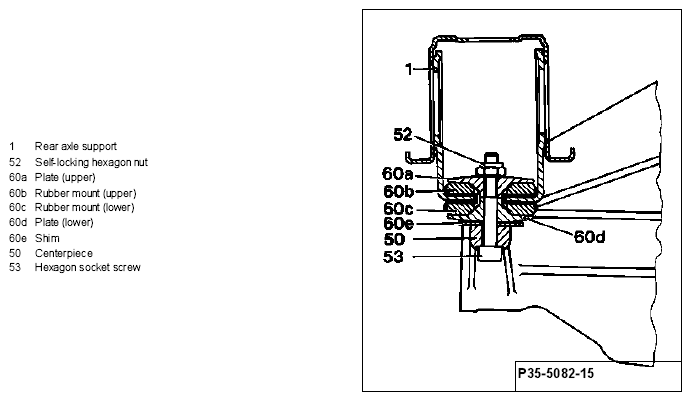

    Fig 6: Identifying Sequence Of Suspension Components
    G04685803Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Lower rear centerpiece assembly (28) with propeller shaft until the propeller shaft contacts the tunnel closing panel (29) or retaining bracket for safety belt fixing (127).

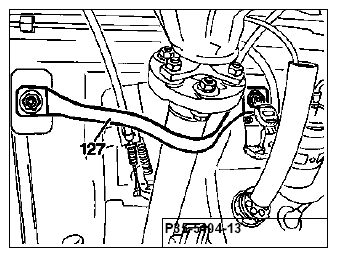

Fig 7: Identifying Propeller Shaft Safety Belt
G04685804Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. 6 Unscrew self-locking hexagon socket screws (L6/3a, L6/3b).

    Withdraw left or right wheel speed sensor (L6/3 or L6/4) vertically upwards, do not subject cables of the left or right wheel speed sensors (L6/3 or L6/4) to tension.

    Installation note

    Replace self-locking hexagon socket screws and O-ring.

    Ensure cleanliness of the magnetic edges on the left or right wheel speed sensors (L6/3 or L6/4). The shims on the contact surface of the left or right wheel speed sensors (L6/3 or L6/4) on the rear axle housing must not be mislaid or transposed.

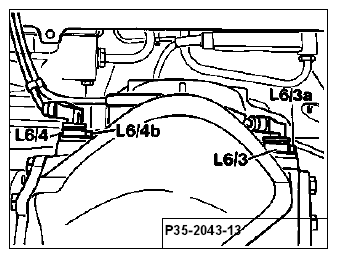

    Fig 8: Identifying Wheel Speed Sensors
    G04685805Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. 7 Remove cover from plug connection, rear axle distributor (X62/8).
  3. 8 Turn bayonet fitting (122) on the plug connection, rear axle distributor (X62/8) and separate.

    Loosen cover (123) by one notch.

    Remove plug (L6/3x1) (E and D).

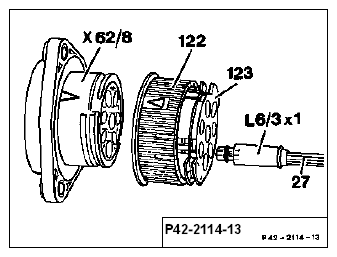

    Fig 9: Identifying Rear Axle Distributor
    G04685806Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installation note

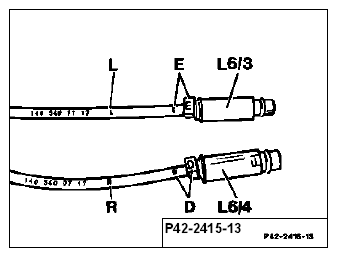

Note plug marking.

Fig 10: Identifying Plug Mark
G04685807Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Notes on wheel speed sensors

Models 124 and 201

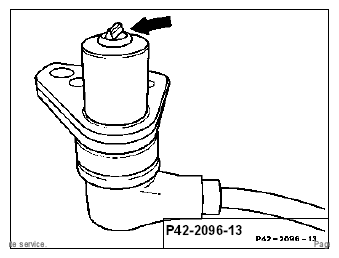

The 2 wheel speed sensors on the front axle can be recognized by the single-edged tip (arrow) and at the long cable with co-axial plug (as on vehicles with ABS).

Fig 11: Locating Wheel Speed Sensors
G04685808Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The left rear axle speed sensor (L6/3) is marked with "E" on the plug (arrow).

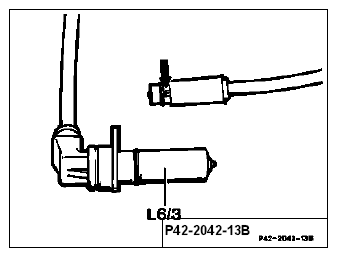

Fig 12: Identifying Left Rear Axle Speed Sensor
G04685809Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The right rear axle speed sensor (L6/4) is marked with "D" on the plug (arrow).

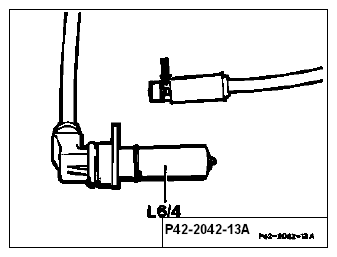

Fig 13: Identifying Right Rear Axle Speed Sensor
G04685810Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

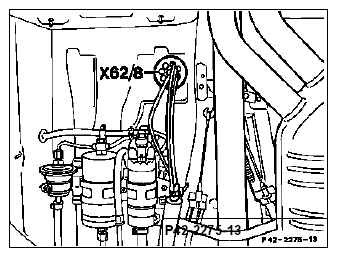

The plugs "D" and "E" of the wheel speed sensors are plugged into the plug connection, rear axle distributor (X62/8).

Fig 14: Identifying Rear Axle Distributor
G04685811Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 126

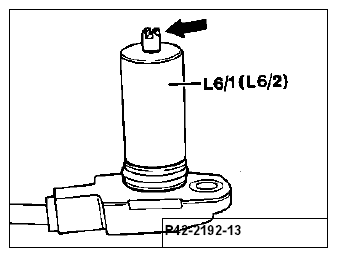

The 2 wheel speed sensors on the front axle (L6/1 and L6/2) can be recognized by the double-edged tip (arrow) and by the long cable with co-axial plug (as on vehicles with ABS).

Fig 15: Identifying Wheel Speed Sensors On Front Axle - Model 126
G04685812Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The left rear axle wheel speed sensor (L6/3) is a straight design. The cable has a connector as plug connection (L6/3x).

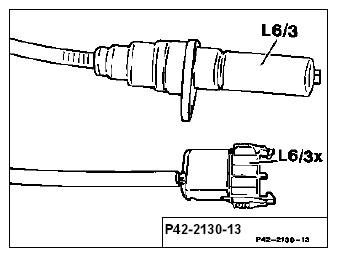

Fig 16: Identifying Left Rear Axle Wheel Speed Sensor
G04685813Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The right rear axle speed sensor (L6/4) is an angled design. The cable has a plug as a plug connection (L6/4x).

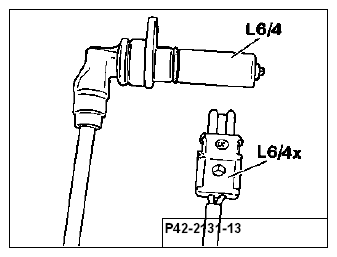

Fig 17: Identifying Right Rear Axle Speed Sensor
G04685814Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 129

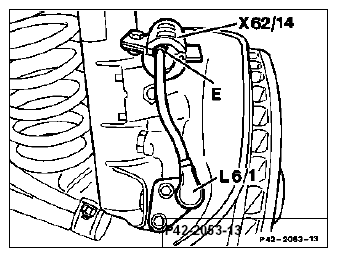

The 2 wheel speed sensors (L6/1, L6/2) on the front axle can be recognized by the single-edged tip (refer to model 124) and by the short cable (approx. 150 mm), which leads into the plug connections (X62/14 or X62/15) on the steering knuckle.

Fig 18: Identifying Plug Connections - Model 129
G04685815Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

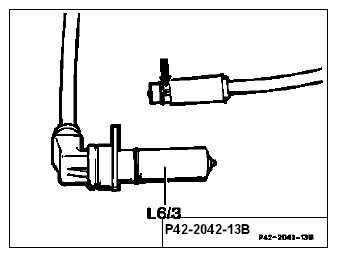

The left rear axle speed sensor (L6/3) is an angled design. The plug (L6/4x1) is marked with the letter "E" (arrow).

Fig 19: Identifying Mark On Left Rear Axle Speed Sensor
G04685816Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The right rear axle speed sensor (L6/4) is an angled design. The plug is marked with the letter "D" (arrow).

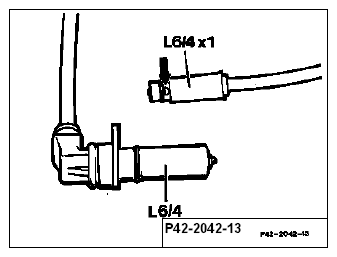

Fig 20: Identifying Mark On Right Rear Axle Speed Sensor
G04685817Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The plugs (D and E) of the wheel speed sensors are plugged into the plug connection, rear axle distributor (X62/8) in the openings (X62/8) marked with "D" and "E".

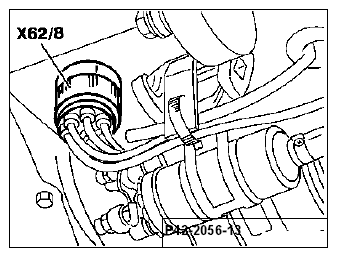

Fig 21: Identifying Rear Axle Distributor
