Removal and installation of accumulator - RA42001400819X(42-0819)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation no. of operation texts and work units or standard texts and flat rates

  1. Models 124, 126, 201

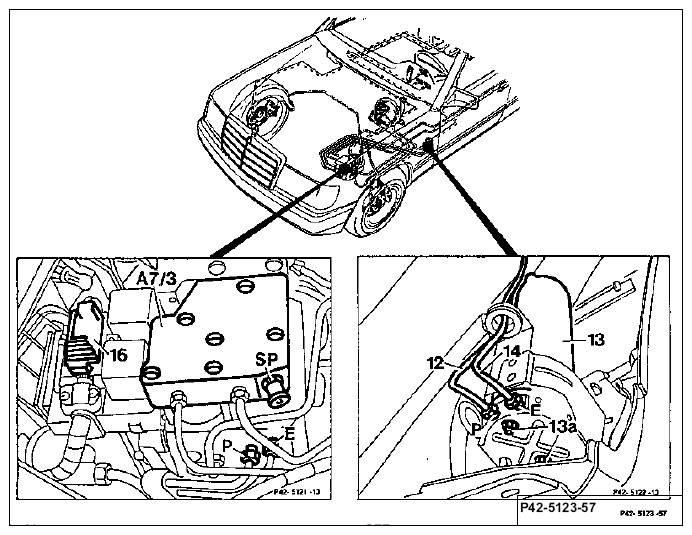

    Fig 1: Identifying Accumulator Components - Models 124, 126, 201
    G04685777Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Ignition OFF  .
    Hydraulic system depressurize. Open bleed screw "SP" at ASR hydraulic unit (A7/3) approx. 1 turn, drain entire accumulator contents into the receptacle for brake fluid.
    Cover hoods unclip or remove after slackening the screw, put on.
    Electrical connector detach from the ASR hydraulic unit (A7/3), replace. Follow installation note.
    Hydraulic lines (12, 14) unscrew, screw on at the connections "P" and "E" on the ASR hydraulic unit (A7/3). Only use 9 x 11 mm double ended flat flare nut ring wrench for slackening, 15 Nm. Seal connections.
    Steering wheel turn to the left as far as the stop.
    Left front wheelhouse lining remove, install.
    Nuts (13a) unscrew, screw on.
    Pressure accumulator (13) with lines (12 and 14) withdraw to the front, install.
    ASR hydraulics bleed and check for leaks (42-010).
    ASR hydraulics test program perform (42-0824 or Diagnosis Manual - Chassis).
    Models 124.034/036
    Fault memory
    readout and erase in accordance with Diagnosis Manual - Chassis.

    Special tools

    Fig 2: Identifying Special Tools (000 589 75 03 00 00)
    G04685778Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 3: Identifying Special Tools (001 589 72 21 00 00)
    G04685779Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 4: Identifying Special Tools (129 589 00 91 00 77)
    G04685780Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 5: Identifying Special Tools (000 589 01 10 00 00)
    G04685781Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    NOTE: Only use commercially available double ended flat flare nut ring wrench to slacken the brake lines.

    Seal hydraulic lines and connections with blind plugs.

    Installation note

    When installing the hydraulic lines, clean sealing surfaces of swarf and dirt.

    The plug connection (16) must engage audibly when connecting.

    Markings on the ASR hydraulic unit (A7/3):

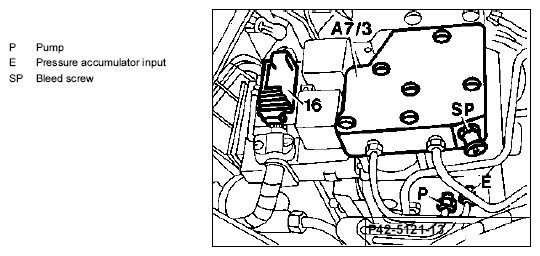

    Fig 6: Identifying ASR Hydraulic Unit Components Location
    G04685782Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Check line routing:

    • Pressure accumulator connection "P" -ASR hydraulic unit (A7/3) connection "P",
    • Pressure accumulator connection "E" -ASR hydraulic unit (A7/3) connection "E".

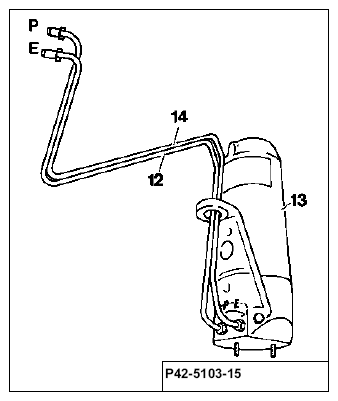

      Fig 7: Identifying Pressure Accumulator Connection
      G04685783Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Model 129

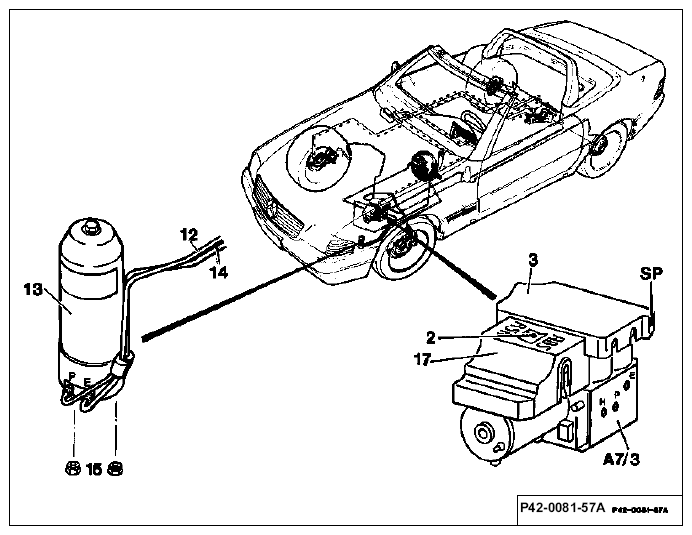

    Fig 8: Identifying Pressure Accumulator And ASR Hydraulic Unit - Model 129
    G04685784Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Ignition OFF  .
    Hydraulic system depressurize. Open bleed screw "SP" on ASR hydraulic unit (A7/3) approx. 1 turn, drain complete contents of accumulator into the receptacle for brake fluid.
    Cover hoods (3 and 17) unclip or remove after slackening the screw (2), put on.
    Electrical connector detach from ASR hydraulic unit (A7/3), replace.
    Hydraulic lines (12, 14) Follow installation note
    Unscrew from, screw on to the connections "P" and "E" on the ASR hydraulic unit (A7/3). Only use 9 x 11 mm double ended flat flare nut ring wrench for slackening, 15 Nm. Seal connections.
    Nuts (15) unscrew, screw in at vehicle floor.
    Pressure accumulator (13) remove, install with the lines (12 and 14) using a rotary movement upwards.
    Before installation, align the lines on pressure accumulator and tighten.
    ASR hydraulics bleed and check for leaks (42-010).
    ASR hydraulics test program
    Model 129.067/076
    Fault memory
    perform (42-0824, or Diagnosis Manual - Chassis) readout and erase in accordance with Diagnosis Manual - Chassis.

    Special tools

    Fig 9: Identifying Special Tools (000 589 75 03 00 00)
    G04685785Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 10: Identifying Special Tools (001 589 72 21 00 00)
    G04685786Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 11: Identifying Special Tools (129 589 00 91 00 77)
    G04685787Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 12: Identifying Special Tools (000 589 01 10 00 00)
    G04685788Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    NOTE: Only use commercially available double ended flat flare nut ring wrench to slacken the brake lines.

    Seal hydraulic lines and connections with blind plugs.

    Installation note

    When installing the hydraulic lines, clean sealing surfaces of swarf and dirt.

    Electrical connector (16) must engage audibly when connecting.

    Markings on the ASR hydraulic unit (A7/3):

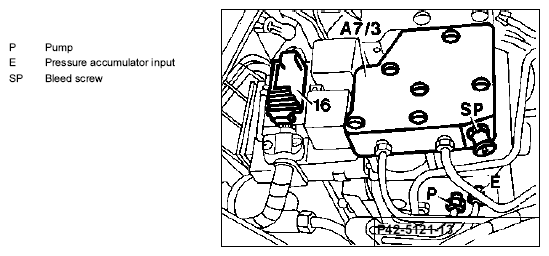

    Fig 13: Identifying ASR Hydraulic Unit And Electrical Connector
    G04685789Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Check line routing:

    • Pressure accumulator connection "P" -ASR hydraulic unit (A7/3) connection "P",
    • Pressure accumulator connection "E" -ASR hydraulic unit (A7/3) connection "E".
      Fig 14: Identifying Pressure Accumulator Connection
      G04685790Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Model 140

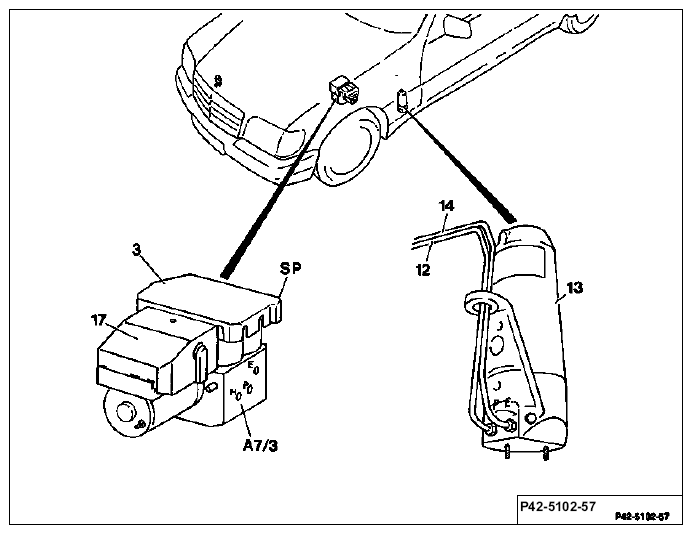

    Fig 15: Identifying ASR Hydraulic Unit And Pressure Accumulator - Model 140
    G04685791Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Ignition OFF  .
    Cover hoods (3 and 17) remove, install.
    Hydraulic system depressurize. Open bleed screw "SP" on ASR hydraulic unit (A7/3) approx. 1 turn, drain complete contents of accumulator into the receptacle for brake fluid.
    Tension relief remove, install.
    Plug connection detach from ASR hydraulic unit (A7/3), attach.
    Hydraulic lines (12, 14) Follow installation note (item 1)
    unscrew, screw on at the pressure accumulator (13). Only use (9 x 11 mm) double ended flat flare nut ring wrench for slackening, 15 Nm. Follow note.
    Side panelling detach, install between driver's door and front fender.
    Plastic panelling detach, assemble.
    Stiffening bracket press to one side, mount.
    Pressure accumulator (13) remove, install.
    Before installing, align the lines to the pressure accumulator and tighten.
    Follow installation note (items 2 and 3).
    Retaining plate remove from, install at pressure accumulator.
    Hydraulic system bleed (42-010).
    ASR hydraulic test program perform in accordance with Diagnosis Manual - Chassis.
    Fault memory readout and erase in accordance with Diagnosis Manual - Chassis.

    Special tools

    Fig 16: Identifying Special Tools (129 589 00 91 00 77)
    G04685792Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 17: Identifying Special Tools (001 589 72 21 00 00)
    G04685793Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 18: Identifying Special Tools (000 589 75 03 00 00)
    G04685794Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    Fig 19: Identifying Special Tools (000 589 01 10 00 00)
    G04685795Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
    NOTE: Only use commercially available double ended flat flare nut ring wrench to slacken the brake lines.

    Seal hydraulic lines and connections with blind plugs.

    When installing the hydraulic lines, clean sealing surfaces of swarf and dirt.

    Installation note

    1. Electrical connector (16) must engage audibly when connecting.

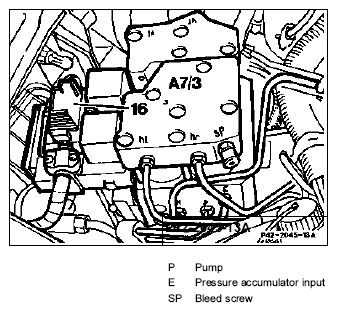

      Fig 20: Identifying ASR Hydraulic Unit And Electrical Connector
      G04685796Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

      Markings on the ASR hydraulic unit (A7/3):

    2. Before installing, align hydraulic lines (12 and 14) to pressure accumulator (13) and tighten.
    3. Checking line routing:
      • Pressure accumulator connection "P" - ASR hydraulic unit (A7/3) connection "P",
      • Pressure accumulator connection "E" - ASR hydraulic unit (A7/3) connection "E".

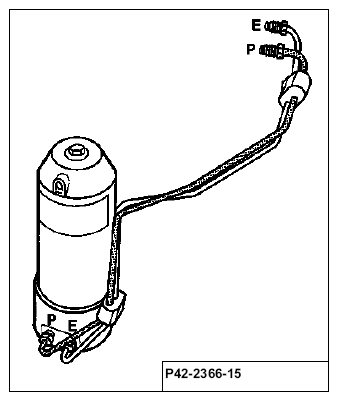

        Fig 21: Identifying Pressure Accumulator Connection
        G04685797Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
